HAOHAN天然气组分检测中阀切换应用填充柱13X2M*3MM

浩瀚色谱（山东）应用技术开发有限公司介绍了四阀六柱气相色谱仪在天然气组分检测中几种切换阀的应用技术,利用多阀多柱系统的组合,只需一次性进样就可以实施天然气样品的多组分同时分析,缩短了分析时间,提高了检测效率.切换阀的应用,不仅操作方便,而且结果稳定可靠.


名称：填充柱

固定相：分子筛

规格：2m*3mm

粒度；60-80目（250um-180um）

型号：13X

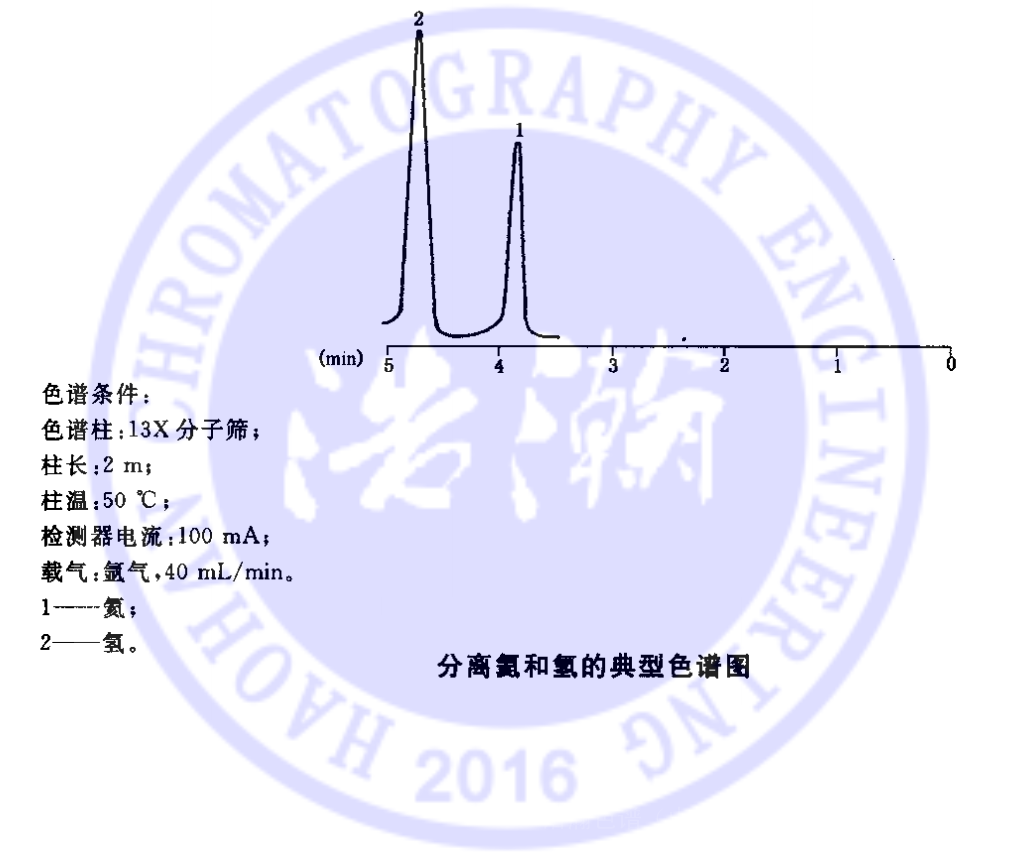

应用：GB/T 13610-2003天然气的组成分析 气相色谱法，O2,N2,CH4的分离测定


Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. introduced the application technology of several switching valves in the detection of natural gas components by four-valve six-column gas chromatograph. Using the combination of multi-valve and multi-column systems, only one injection can be performed. The implementation of multi-component simultaneous analysis of natural gas samples shortens the analysis time and improves the detection efficiency. The application of switching valve is not only convenient for operation, but also stable and reliable in results.

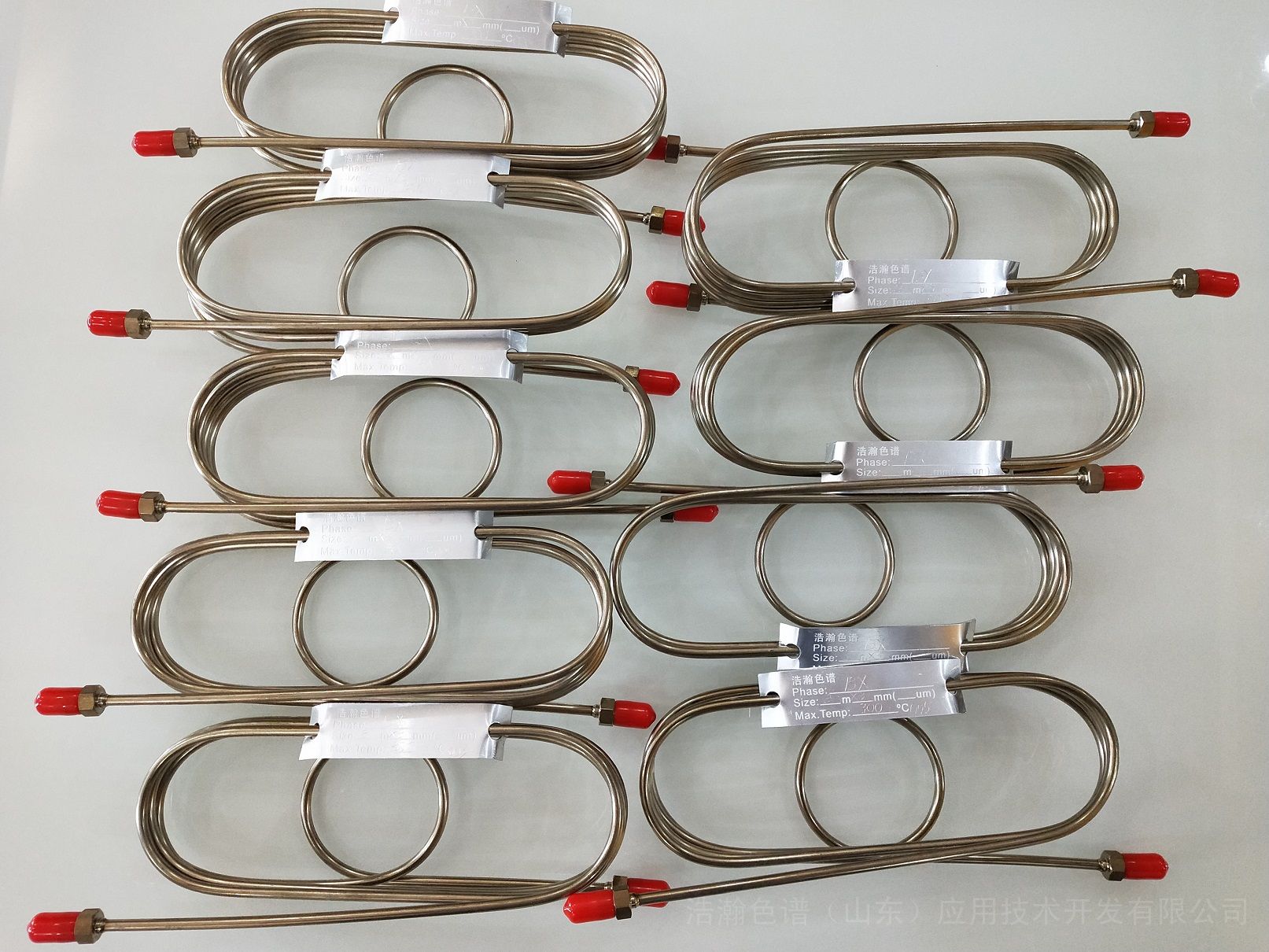

Name: Packed Column

Stationary Phase: Molecular Sieve

Specifications: 2m*3mm

Particle size; 60-80 mesh (250um-180um)

Model: 13X

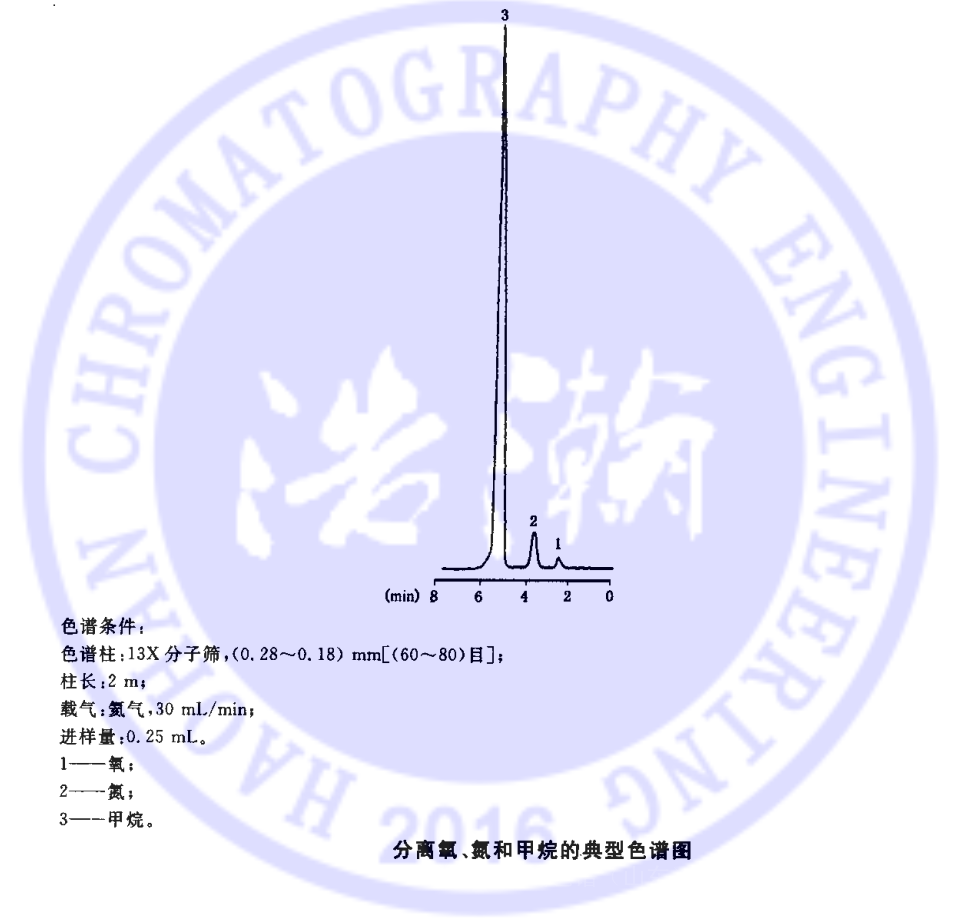

Application: GB/T 13610-2003 Composition Analysis of Natural Gas-Gas Chromatography, Separation and Determination of O2, N2, CH4
