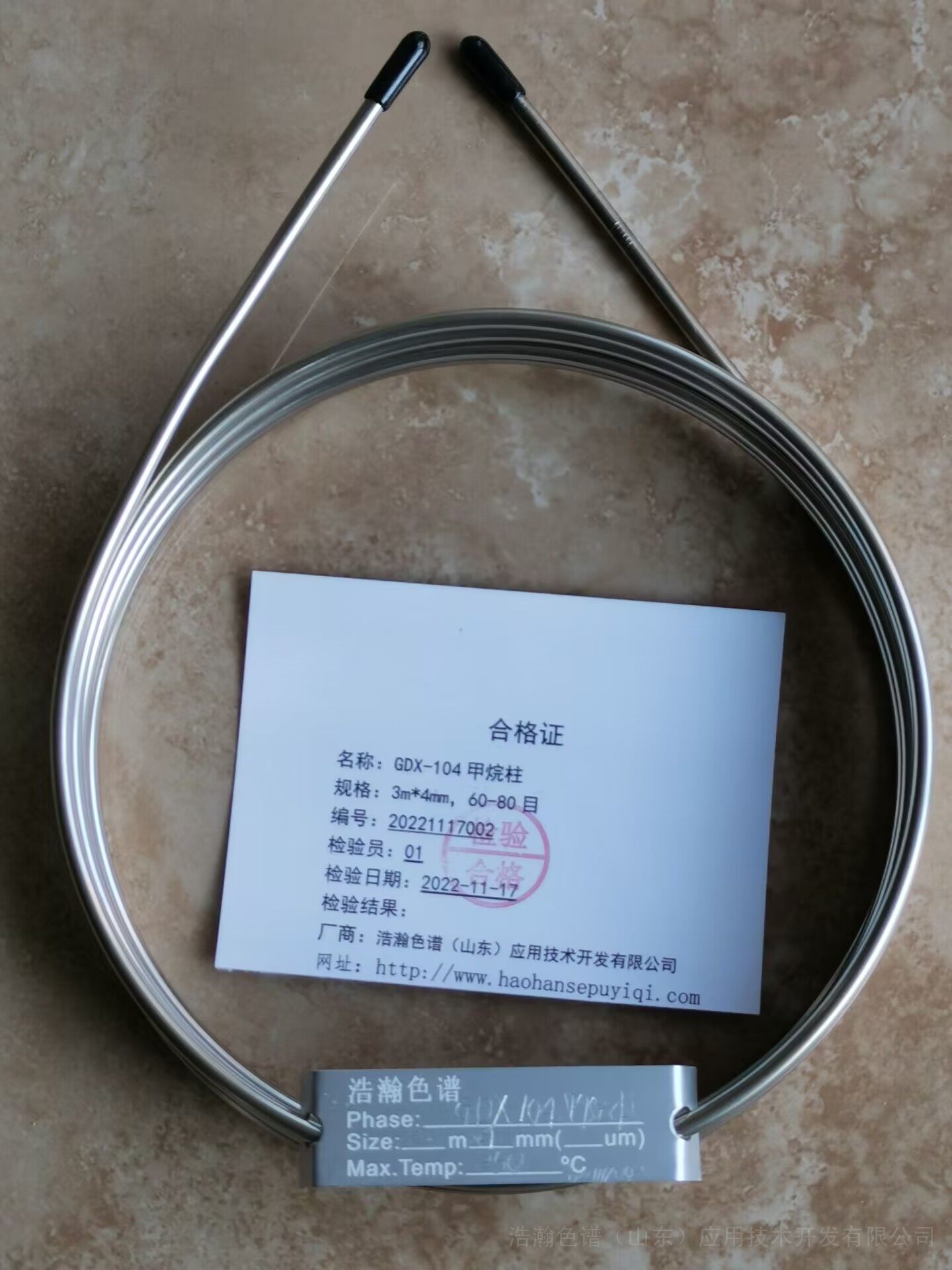

浩瀚 三氟一溴甲烷灭火剂1301测定GDX-104填充柱3m*4mm

三氟一溴甲烷灭火剂（1301灭火剂） GB6051-1985

3.2.1.2   测定条件
         a.  色谱柱：3m长不锈钢管，内径为4mm；
         b.  固定相：GDX－104，60～80目。使用前需活化，活化条件为通氮气（30～50ml/min ）， 140℃不少于6h；
         c.  载气：氢气，流量为45ml/min （用皂膜流量计实测）；
         d.  温度控制：柱温为115℃，汽化温度为100℃，检测室温度为100℃；
         e.  桥电流：200mΑ；
          f.  记录仪：满标量程为5mV ，满标长度为250mm，纸速为10mm/min；
         g.  检测器灵敏度的控制：为确保色谱分析灵敏度，在规定的操作条件下，以1301为样品，灵敏度S₁₃₀₁应不低于1500mV·ml/ml，由式（1）表示。

式中：1.065――峰面积校正系数；
                 A――1301色谱峰面积，m㎡；
               _C1――记录纸速的倒数，min/mm；
               C2――记录仪灵敏度，mV/mm ；
                 F――载气流量，ml/min ；
                 V――1301进样量，ml；
                 K――检测器衰减倍数。

HJ 591-2010 Water quality Determination of pentachlorophenol Gas chromatography

HJ 591-2010 Water Quality Determination of Pentachlorophenol Gas Chromatography was implemented on January 1, 2011.

This standard replaces GB/T 8972-1988 Water Quality Determination of Pentachlorophenol by Gas Chromatography.




Name: Agilent 7890B glass column



Specification: 2m * 1/4, 80-100 meshes



Model: 1.5% OV-17+2% QF-1/Chromosorb AW DMCS (80-100 meshes)



No.: 20220818001



Maximum temperature: 240 ° C



Application: HJ 591-2010 Water Quality Determination of Pentachlorophenol Gas Chromatography



3.2.1.2 Determination conditions

         a. Chromatographic column: 3m long stainless steel tube, with inner diameter of 4mm;

         b. Stationary phase: GDX － 104, 60 ～ 80 meshes. Activation is required before use, and the activation condition is nitrogen (30~50ml/min), 140 ℃, no less than 6h;

         c. Carrier gas: hydrogen, flow rate 45ml/min (measured with soap film flowmeter);

         d. Temperature control: the column temperature is 115 ℃, the vaporization temperature is 100 ℃, and the detection room temperature is 100 ℃;

         e. Bridge current: 200m Α；

f. Recorder: full scale range is 5mV, full scale length is 250mm, and paper speed is 10mm/min;

         g. Control of detector sensitivity: to ensure the sensitivity of chromatographic analysis, the sensitivity S1301 should not be less than 1500mV · ml/ml with 1301 as the sample under the specified operating conditions, expressed by formula (1).



Where: 1.065 - peak area correction coefficient;

A ―― 1301 chromatographic peak area, m ㎡;

C1 -- reciprocal of recording paper speed, min/mm;

C2 ― recorder sensitivity, mV/mm;

F ― carrier gas flow, ml/min;

V-1301 injection volume, ml;

K ---- attenuation multiple of detector.
