浩瀚0871甲醇量检查法yao典2015年版四部HQ填充柱2m*1/8

yao典0871 甲醇量检查法

本法系用气相色谱法（通则0521）测定酒剂或酊剂等含乙醇制剂中甲醇的含量。除另有规定外，按下列方法测定。


色谱条件与系统适用性试验 用直径为0.18～0.25mm的二乙烯苯-乙基乙烯苯型高分子多孔小球作为载体；柱温125℃。理论板数按甲醇峰计算应不低于1500；甲醇峰、乙醇峰与内标物质各相邻色谱峰之间的分离度应符合规定。

校正因子测定 精密量取正丙醇1ml，置100ml量瓶中，用水溶解并稀释至刻度，摇匀，作为内标溶液。另精密量取甲醇1ml，置100ml量瓶中，用水稀释至刻度，摇匀，精密量取10ml，置100ml量瓶中，精密加入内标溶液10ml，用水稀释至刻度，摇匀，取1μl注入气相色谱仪，连续进样3～5次，测定峰面积，计算校正因子。

测定法 精密量取内标溶液1ml，置10ml量瓶中，加供试液至刻度，摇匀，作为供试品溶液，取lμl注入气相色谱仪，测定，即得。

除另有规定外，供试液含甲醇量不得过0.05% （ml/ml） 。

编号：20231007007

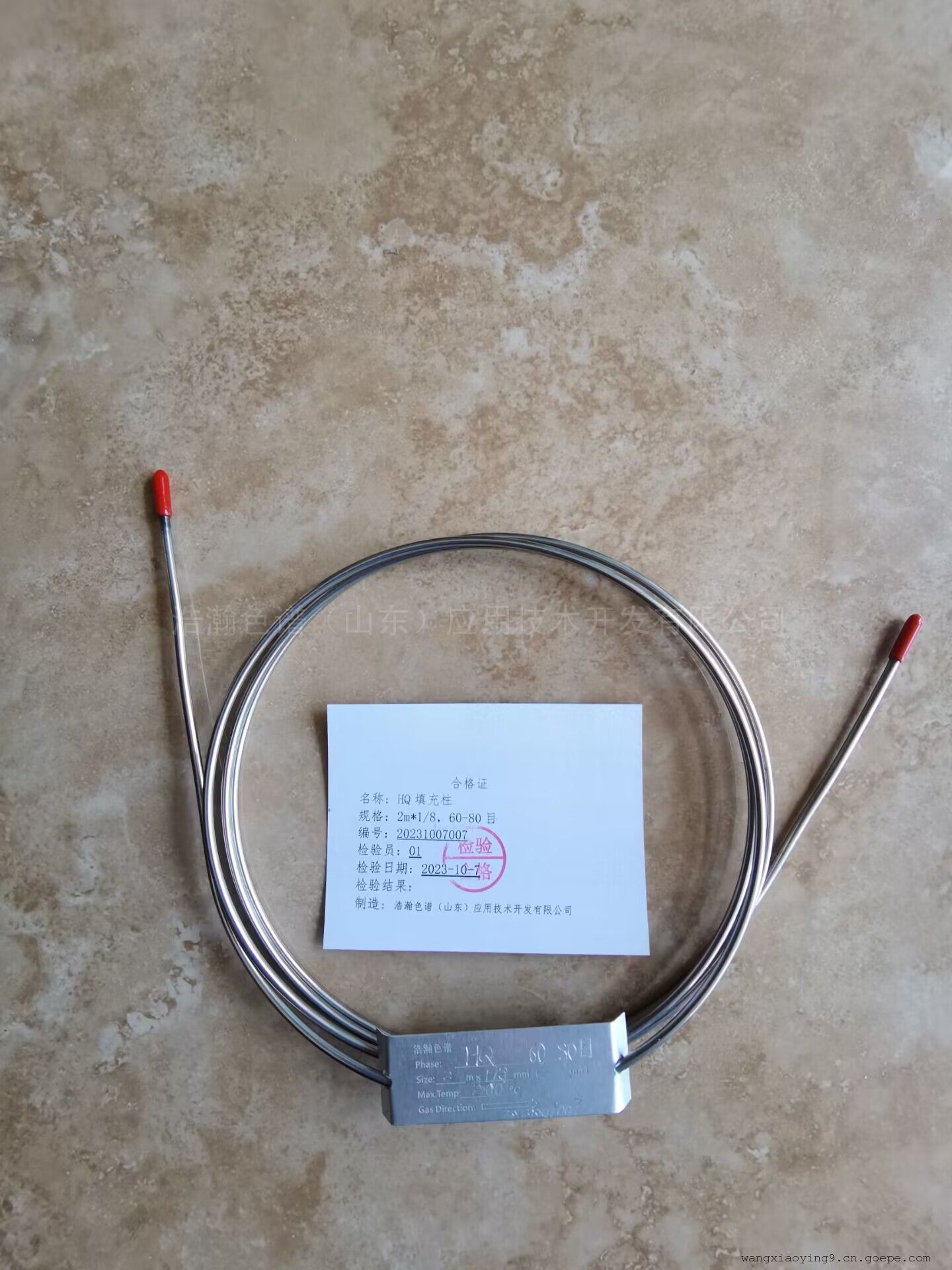

型号：HQ填充柱
规格：2m*1/8，60-80目
*高使用温度：200°C

Yao Dian 0871 Methanol Content Inspection Method



This method uses gas chromatography (General Rule 0521) to determine the content of methanol in ethanol containing preparations such as alcoholic beverages or tinctures. Unless otherwise specified, measure according to the following method.




Chromatographic conditions and system suitability tests were carried out using porous microspheres of divinylbenzene ethylenebenzene type polymers with a diameter of 0.18-0.25mm as carriers; The column temperature is 125 ℃. The number of theoretical plates calculated based on methanol peak should not be less than 1500; The resolution between the methanol peak, ethanol peak, and adjacent chromatographic peaks of the internal standard substance should comply with regulations.



Precision measurement of calibration factor: Take 1ml of n-propanol and place it in a 100ml volumetric flask. Dissolve and dilute with water to the mark, shake well, and use it as the internal standard solution. Accurately measure 1ml of methanol and place it in a 100ml volumetric flask. Dilute with water to the mark, shake well. Accurately measure 10ml and place it in a 100ml volumetric flask. Accurately add 10ml of internal standard solution and dilute with water to the mark, shake well, and take 1 μ Inject into the gas chromatograph, continuously inject 3-5 times, measure the peak area, and calculate the correction factor.



Precision measurement method: Take 1ml of the internal standard solution, place it in a 10ml volumetric flask, add the test solution to the mark, shake well, and use it as the test solution. Take l μ Inject into a gas chromatograph, measure, and obtain.



Unless otherwise specified, the methanol content of the test solution shall not exceed 0.05% (ml/ml).



No.: 20231007007

Model: HQ filled column

Specification: 2m * 1/8, 60-80 mesh

Maximum operating temperature: 200 ° C
