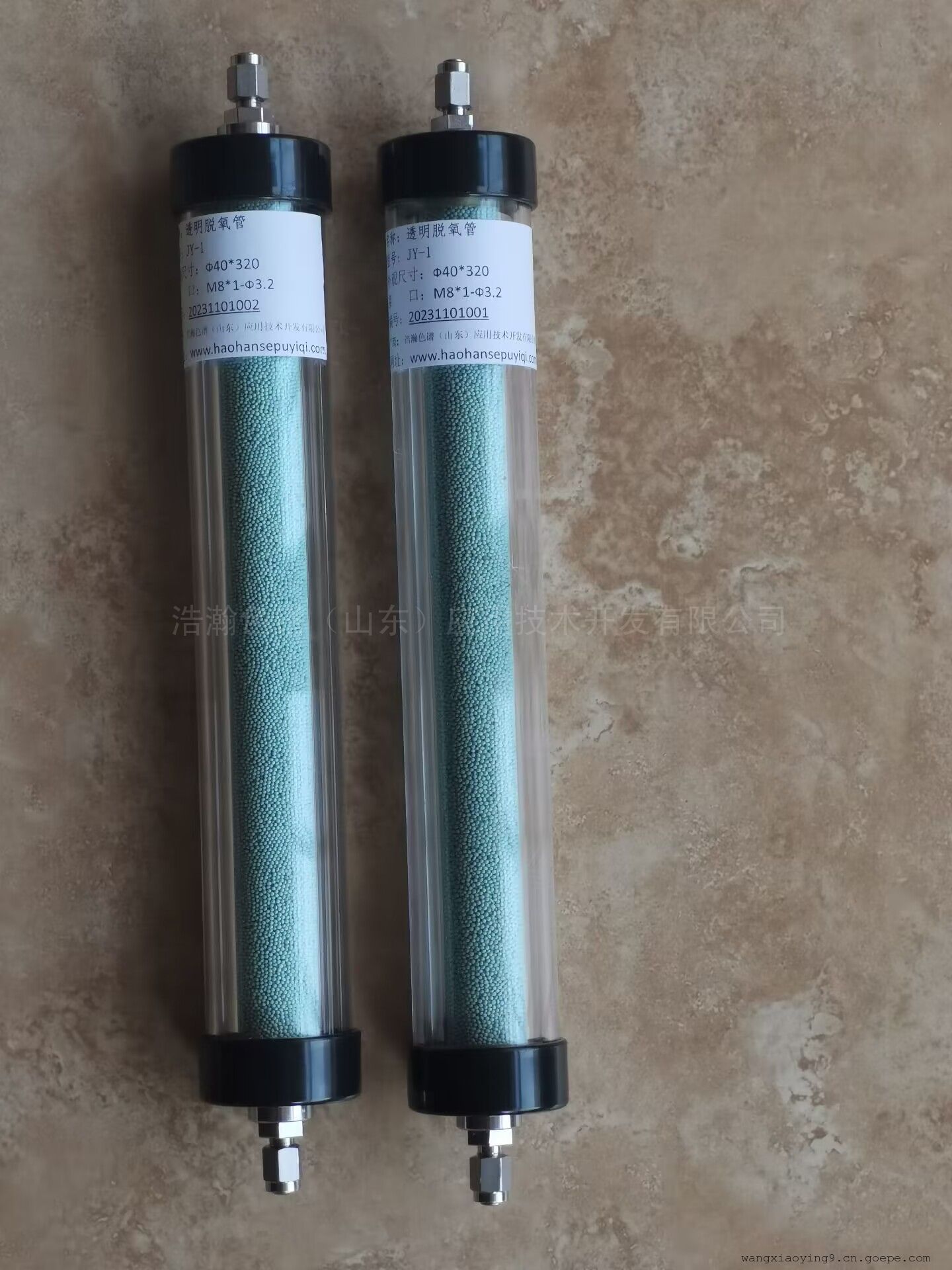

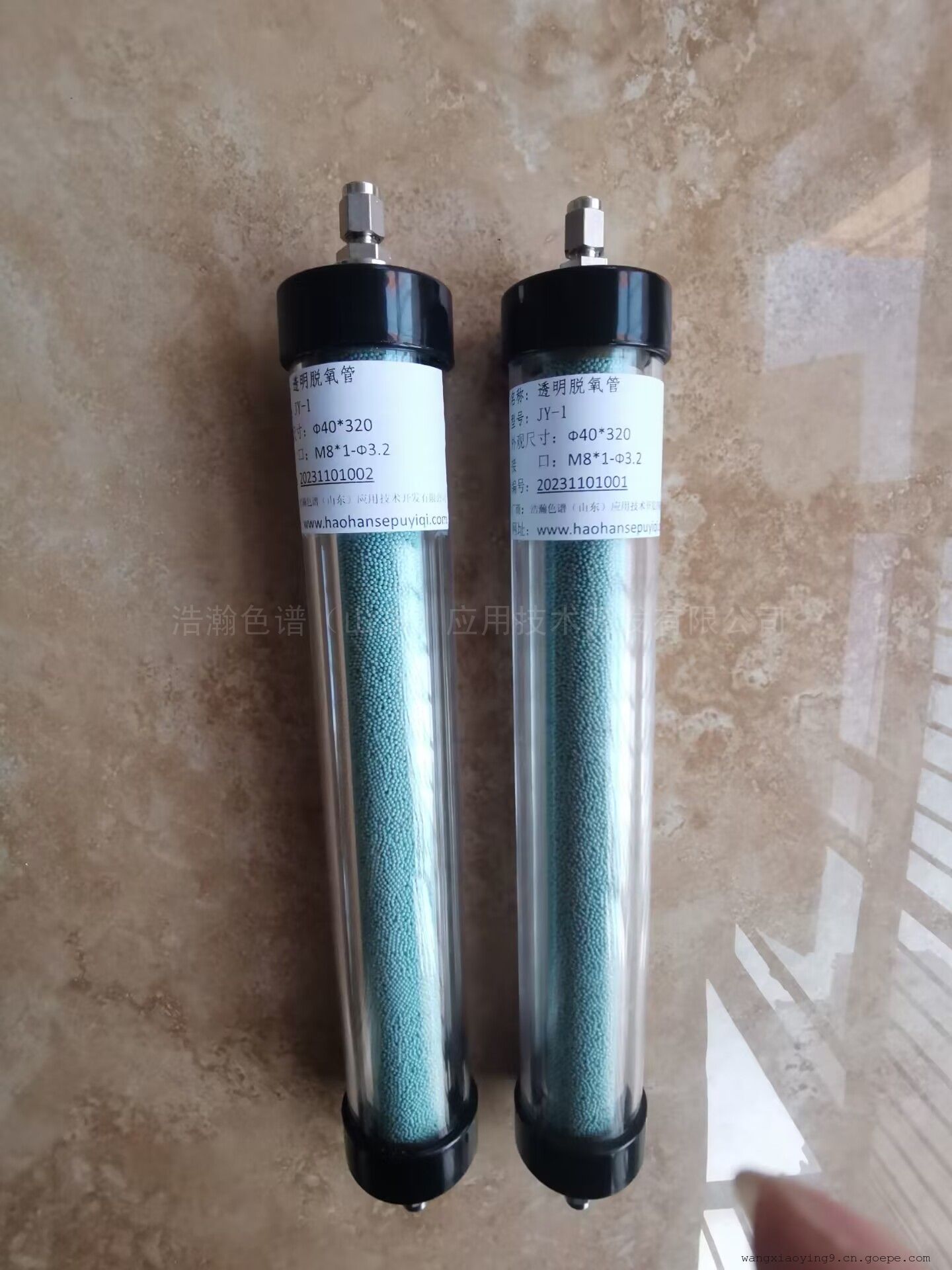

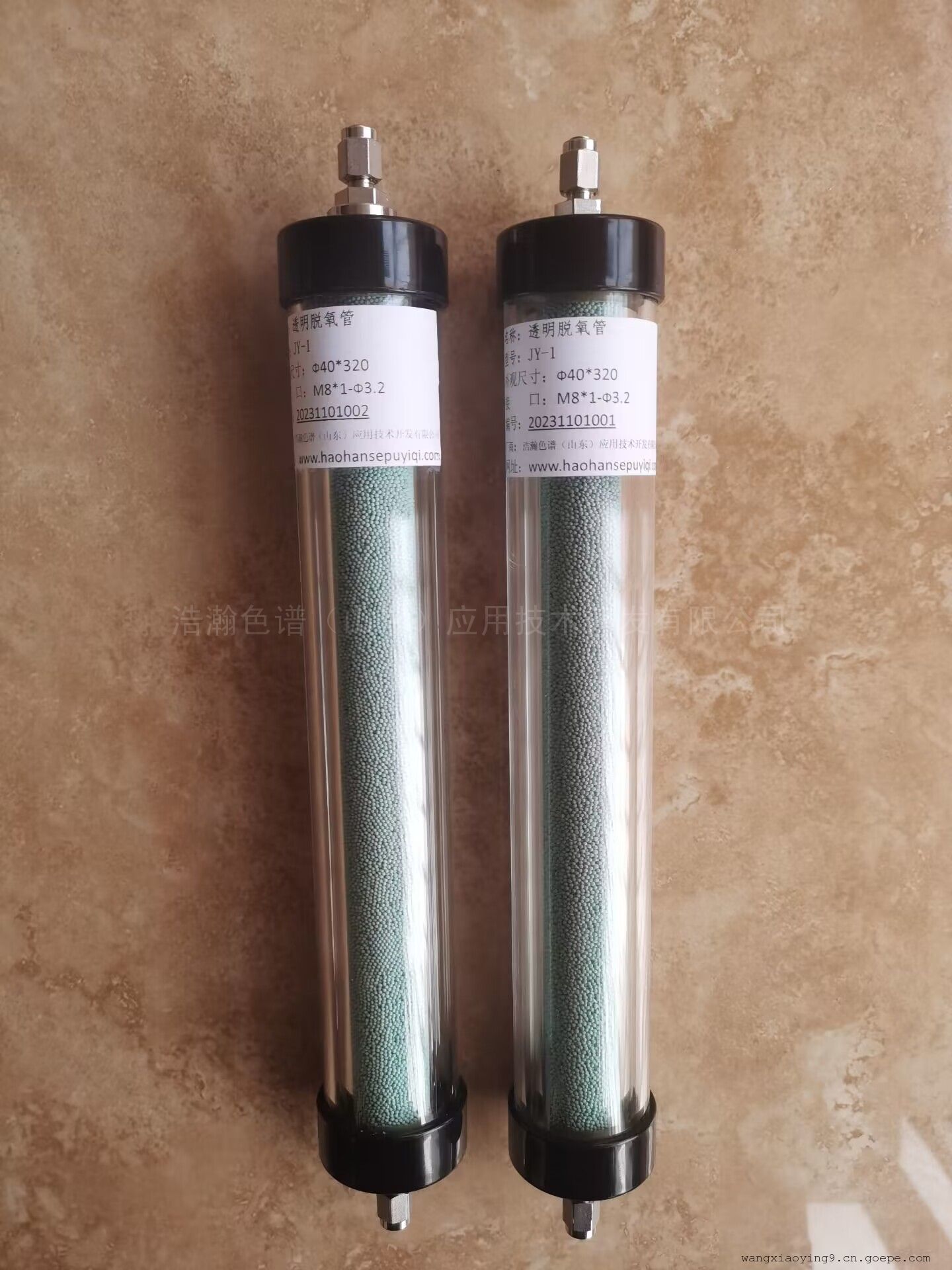

浩瀚JY-1透明脱氧管柱Φ40*320

JY-1透明脱氧管,常温下脱氧深度可达0.01ppm,可从外观直接观测脱氧管的使用情况

1.工作压力：≤0.5Mpa；

2.待净化气体含氧量：≤1000ppm;；

3.净化深度：残氧量≤0.01ppm；

4.活化及再生温度：180~300℃；

5.使用温度：室温；

6.气体流量：≤2000ml/min;


名称：透明脱氧管

型号：JY-1

外观尺寸：Φ40*320

接    口：M8*1-Φ3.2

编号：20231101001

应用：气相色谱仪ECD检测器使用

JY-1 transparent deoxygenation tube, with a deoxygenation depth of up to 0.01ppm at room temperature, allows for direct observation of the use of the deoxygenation tube from its appearance



1. Working pressure: ≤ 0.5Mpa;



2. Oxygen content of the gas to be purified: ≤ 1000ppm;;



3. Purification depth: residual oxygen content ≤ 0.01ppm;



4. Activation and regeneration temperature: 180-300 ℃;



5. Operating temperature: room temperature;



6. Gas flow rate: ≤ 2000ml/min;



Name: Transparent deoxygenation tube



Model: JY-1



External dimensions: Φ 40 * 320



Interface: M8 * 1- Φ three point two



No.: 20231101001



Application: Gas chromatograph ECD detector use
