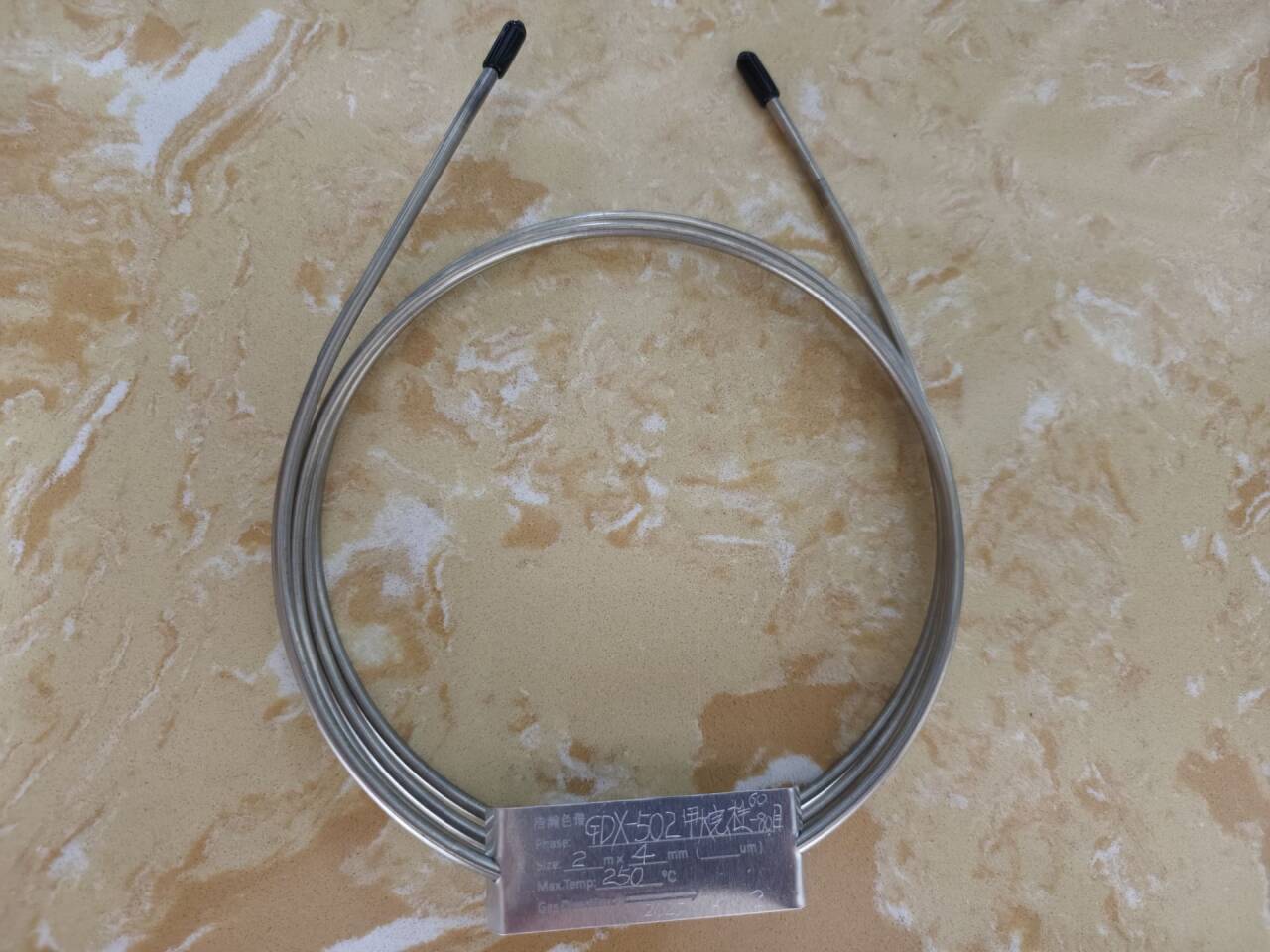

浩瀚GDX-502甲烷柱应用在安捷伦7820A测定环境空气中CH4，，2m*4mm，60-80目

GDX-502是白色多孔微珠，由二乙烯苯和丙烯腈共聚而成的高分子聚合物。它具有热稳定性好，耐腐蚀、耐辐射性，属于中强极性填料。其表观密度为0.33g/ml，比表面积80m²/g，*高使用温度可达250°C。
应用范围方面，适用于C1和C2烃和CO、CO2的分析，能完全分离乙烷、乙烯和乙炔。具体应用包括环境空气中总烃、甲烷、非甲烷总烃的测定；固定污染源废气中总烃、甲烷、非甲烷总烃测定；变压器油中溶解气体CO2、乙烯、乙烷、乙炔的测定；沼气中甲烷的测定；以及焦炉煤气、炼厂气等工业气体的分析。

名称：甲烷柱
型号：GDX-502
规格：2m*4mm，60-80目

zui高温度：250°C

应用：固定污染源废气/环境空气中总烃，甲烷，非甲烷总烃的测定 气相色谱法，HJ-1999,hj-2017

GDX-502广泛用于环境与工业气体分析，符合多项国家标准：
环境监测
HJ 604-2017（环境空气总烃/甲烷/非甲烷总烃）
HJ 38-2017（固定污染源废气总烃/甲烷/非甲烷总烃）
HJ 1286-2023（非甲烷总烃连续监测技术规范）

GDX-502是环境与工业气体分析的理想选择，其性能受柱长和仪器适配显著影响。5m柱长可解决O₂/甲烷干扰问题，特别适用于HJ 604-2017等高标准监测。使用中需严格遵循老化与脱氧流程，以延长柱寿命并保障数据准确性。
  GDX-502 is a white porous microsphere, a polymer composed of divinylbenzene and acrylonitrile. It has good thermal stability, corrosion resistance, and radiation resistance, and belongs to the category of medium strong polarity fillers. Its apparent density is 0.33g/ml, specific surface area is 80m ²/g, and the maximum operating temperature can reach 250 ° C.
In terms of application scope, it is suitable for the analysis of C1 and C2 hydrocarbons and CO, CO2, and can completely separate ethane, ethylene, and acetylene. Specific applications include the determination of total hydrocarbons, methane, and non methane total hydrocarbons in ambient air; Determination of total hydrocarbons, methane, and non methane total hydrocarbons in exhaust gas from fixed pollution sources; Determination of dissolved gases CO2, ethylene, ethane, and acetylene in transformer oil; Determination of methane in biogas; And analysis of industrial gases such as coke oven gas and refinery gas.
Name: Methane Column
Model: GDX-502
Specification: 2m * 4mm, 60-80 mesh
Zui high temperature: 250 ° C
Application: Determination of total hydrocarbons, methane, and non methane total hydrocarbons in fixed source exhaust gas/ambient air by gas chromatography, HJ-1999,hj-2017
GDX-502 is widely used for environmental and industrial gas analysis and complies with multiple national standards:
environmental monitoring
HJ 604-2017 (Environmental Air Total Hydrocarbons/Methane/Non Methane Total Hydrocarbons)
HJ 38-2017 (Fixed Source Waste Gas Total Hydrocarbons/Methane/Non Methane Total Hydrocarbons)
HJ 1286-2023 (Technical Specification for Continuous Monitoring of Non Methane Total Hydrocarbons)
GDX-502 is an ideal choice for environmental and industrial gas analysis, and its performance is significantly affected by column length and instrument adaptation. A column length of 5m can solve the problem of O ₂/methane interference, especially suitable for high standard monitoring such as HJ 604-2017. During use, it is necessary to strictly follow the aging and deoxygenation process to extend the column life and ensure data accuracy.
