haohan三氧化二铝填充柱应用在安捷伦岛津赛默飞PE上AL2O3

氧化铝填充柱 指的是其固定相（Stationary Phase）为氧化铝（Alumina, Al₂O₃） 颗粒的色谱柱。这些氧化铝颗粒被紧密、均匀地填充在一根金属（通常是不锈钢）或玻璃制成的管柱中。

主要特点

1. 强极性固定相：氧化铝是一种具有极高表面积和表面活性的极性固体吸附剂。

2. 吸附色谱：其分离原理主要基于样品组分在氧化铝表面的吸附-脱附能力的差异，而非在液相中的分配（像常见的HP-5、Wax等毛细管柱）。

3. 高分离效能：对C1-C6 烃类异构体（包括烷烃、烯烃、炔烃）具有非常出色的分离能力，能分离许多毛细管柱难以分开的化合物，例如正丁烷和异丁烷。

4. 活性可调：氧化铝的表面活性（即吸附能力强弱）可以通过去活化（Deactivation） 来处理，通常是通过涂覆少量无机盐（如Na₂SO₄、KCl）或水来降低其活性，以避免某些组分（如烯烃）被不可逆吸附或发生催化反应。

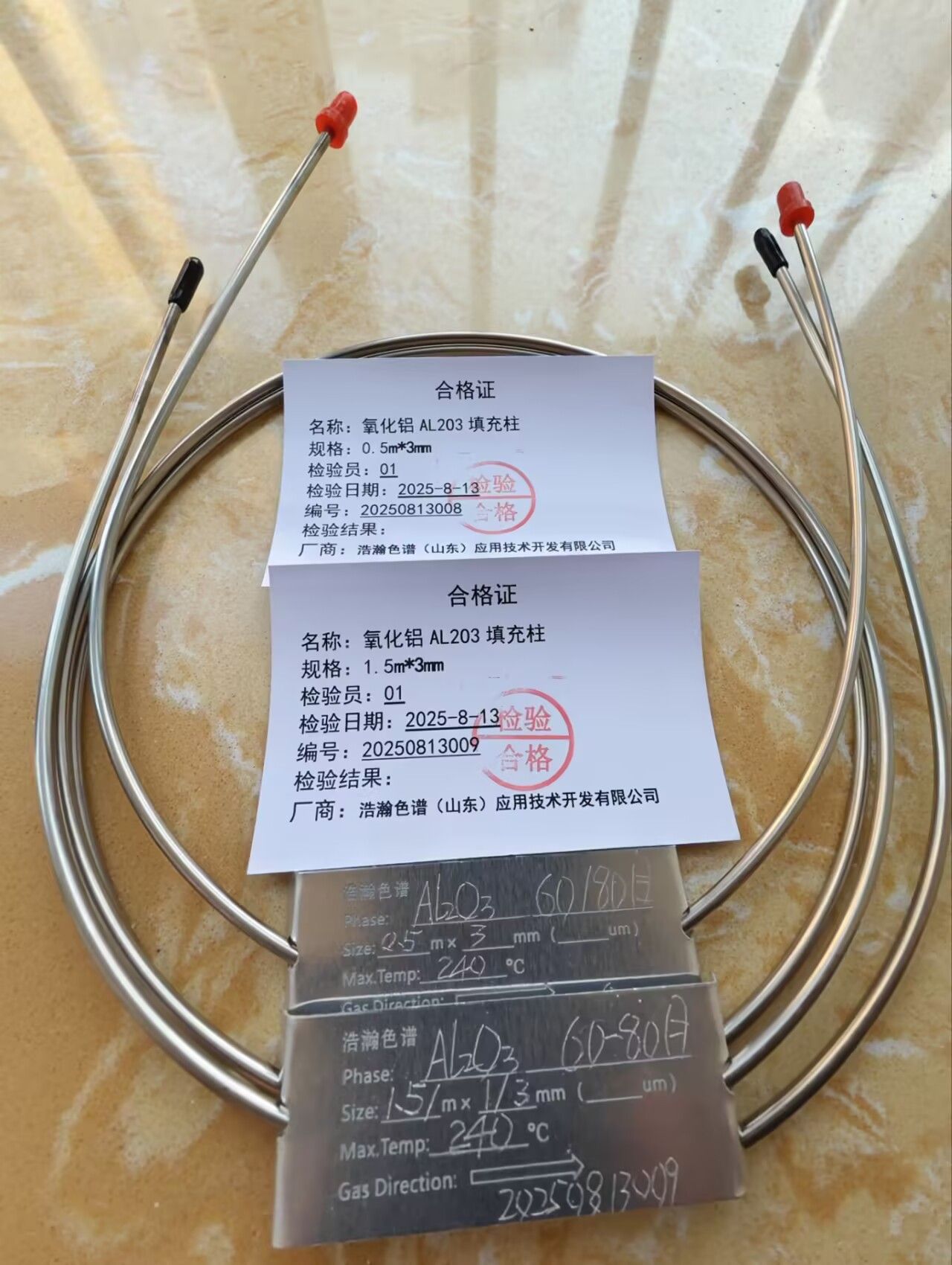

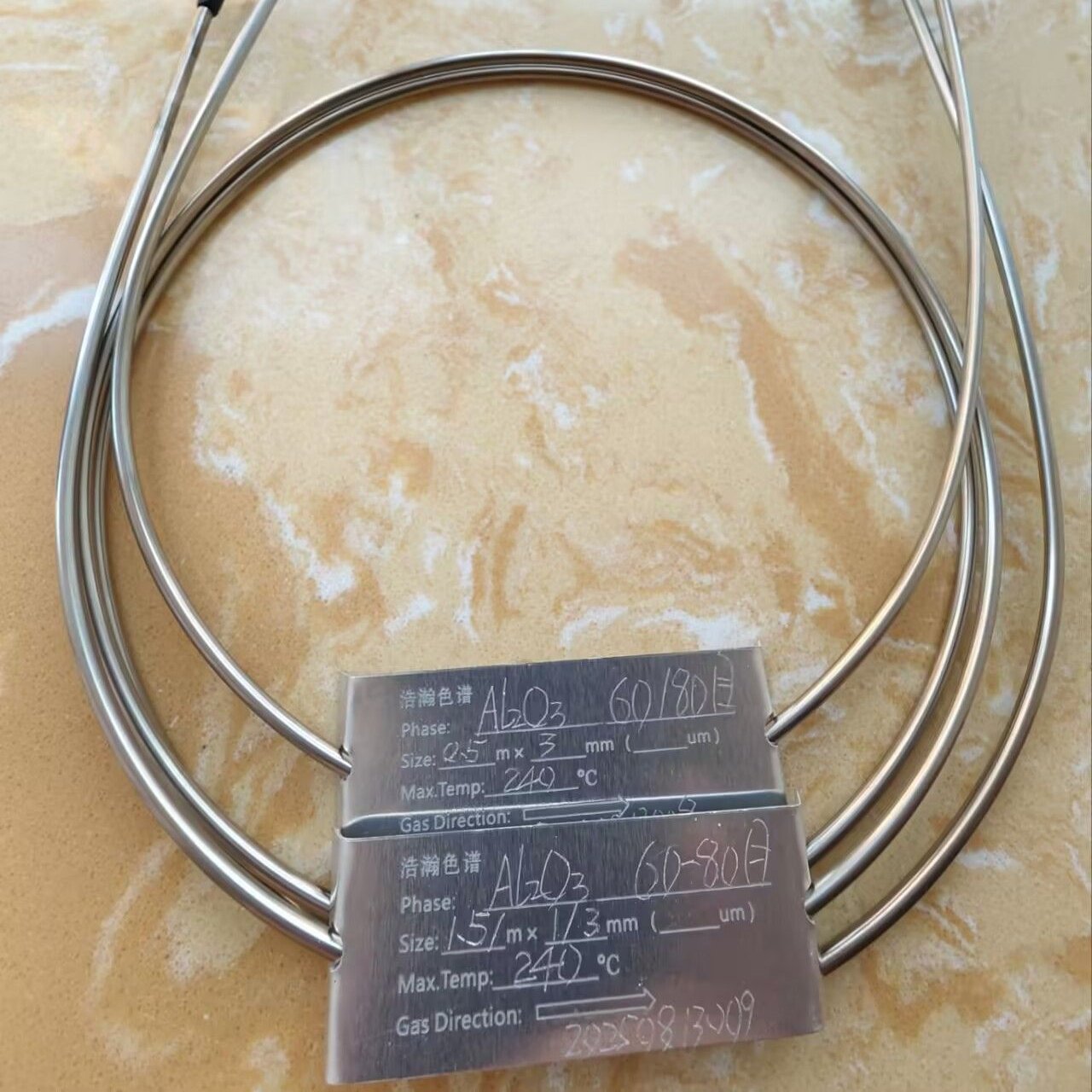

   名称：氧化铝填充柱

   型号：AL2O3

   规格：0.5m*3mm

   *gao使用温度：240°C







   名称：氧化铝填充柱

   型号：AL2O3

   规格：1.5m*3mm

   zui高使用温度：240°C



   应用：液化气，天然气，炼厂气，裂解气，煤气，C1-C5轻烃类分析

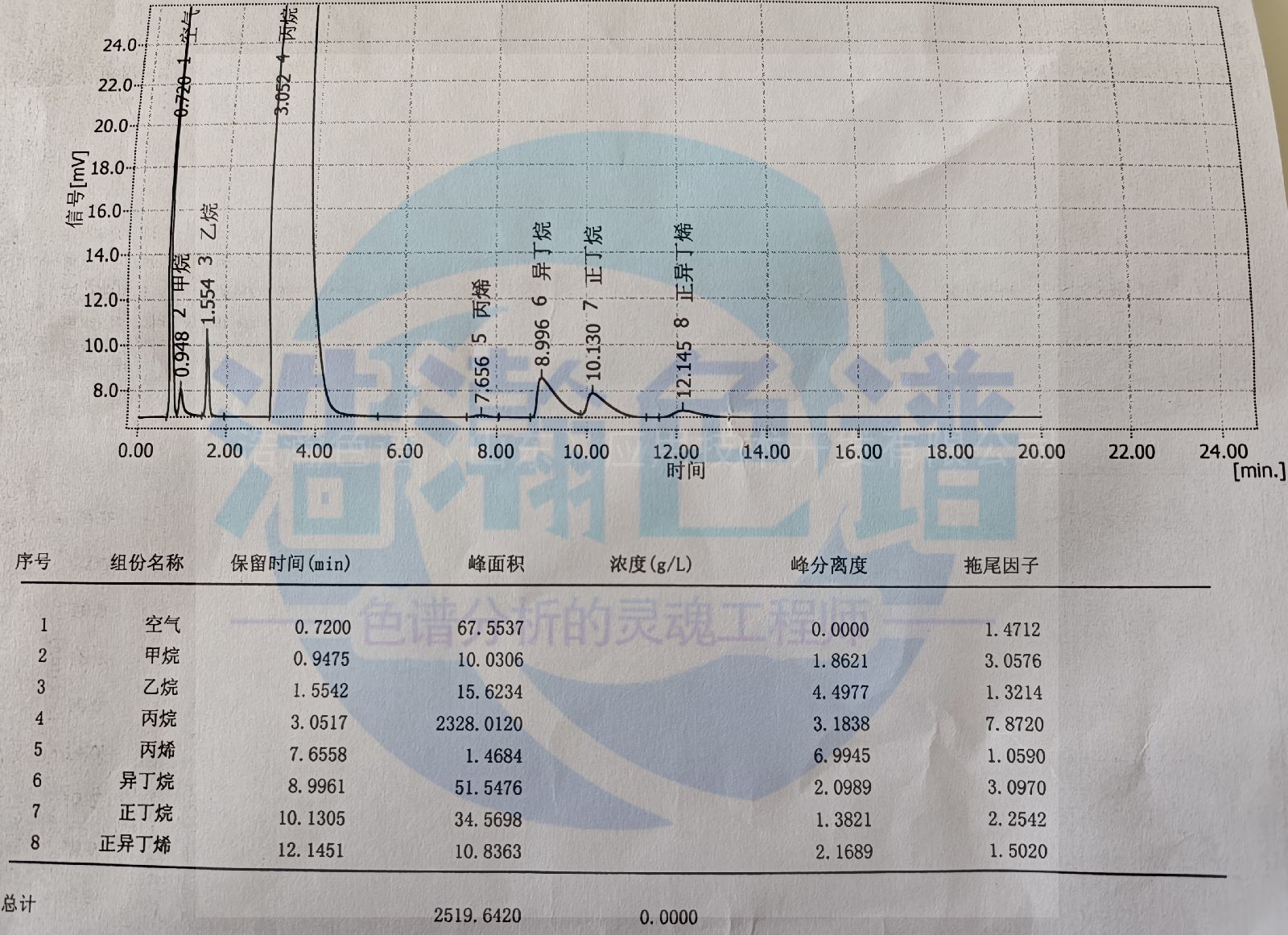

   浩瀚色谱（山东）应用技术开发有限公司，研制生产的《活性氧化铝填充色谱柱应用岛津2010》测定C1-C5的轻烃，分离良好，取得了不错的效果。





Alumina packed column refers to a chromatographic column with a stationary phase of alumina (Al ₂ O3) particles. These alumina particles are tightly and uniformly packed in a metal (usually stainless steel) or glass column.
Main Features
Strong polarity stationary phase: Alumina is a polar solid adsorbent with extremely high surface area and surface activity.
Adsorption chromatography: Its separation principle is mainly based on the difference in adsorption desorption ability of sample components on the surface of alumina, rather than their distribution in the liquid phase (such as common capillary columns such as HP-5 and Wax).
High separation efficiency: It has excellent separation ability for C1 to C6 hydrocarbon isomers (including alkanes, alkenes, and alkynes), and can separate many compounds that are difficult to separate by capillary columns, such as n-butane and isobutane.
Adjustable activity: The surface activity (i.e. adsorption capacity) of alumina can be treated by deactivation, usually by coating a small amount of inorganic salts (such as Na ₂ SO ₄, KCl) or water to reduce its activity, in order to avoid irreversible adsorption or catalytic reactions of certain components (such as olefins).
Name: Alumina filled column
Model: AL2O3
Specification: 0.5m * 3mm
Maximum operating temperature: 240 ° C
Name: Alumina filled column
Model: AL2O3
Specification: 1.5m * 3mm
Maximum operating temperature: 240 ° C
Applications: liquefied gas, natural gas, refinery gas, cracking gas, coal gas, analysis of C1 to C5 light hydrocarbons
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed and produced the "Application of Activated Alumina Filled Chromatography Column Shimadzu 2010" for the determination of light hydrocarbons in C1 to C5, which has achieved good separation and good results.
