haohan药典二氧化碳玻璃球色谱柱应用在安捷伦7890B上0.8m*4mm，80目

《中国药典》规定的二氧化碳气体中碳氢化合物（以甲烷计）的检测，其含量不得过0.0020% (ml/ml)。

 主要参数与应用

规格：常见的色谱柱规格为 0.8米（长）× 4毫米（外径）。

填料：填充物为80目的玻璃球。

*高使用温度：一般在 300°C 至 320°C。

应用方法：该方法采用气相色谱法-氢火焰离子化检测器（FID）。分析时，柱温、进样口温度和检测器（FID）温度分别控制在 110°C、110°C 和 120°C。采用外标法（以甲烷标准气体为对照）进行定量，并需扣除空白值。

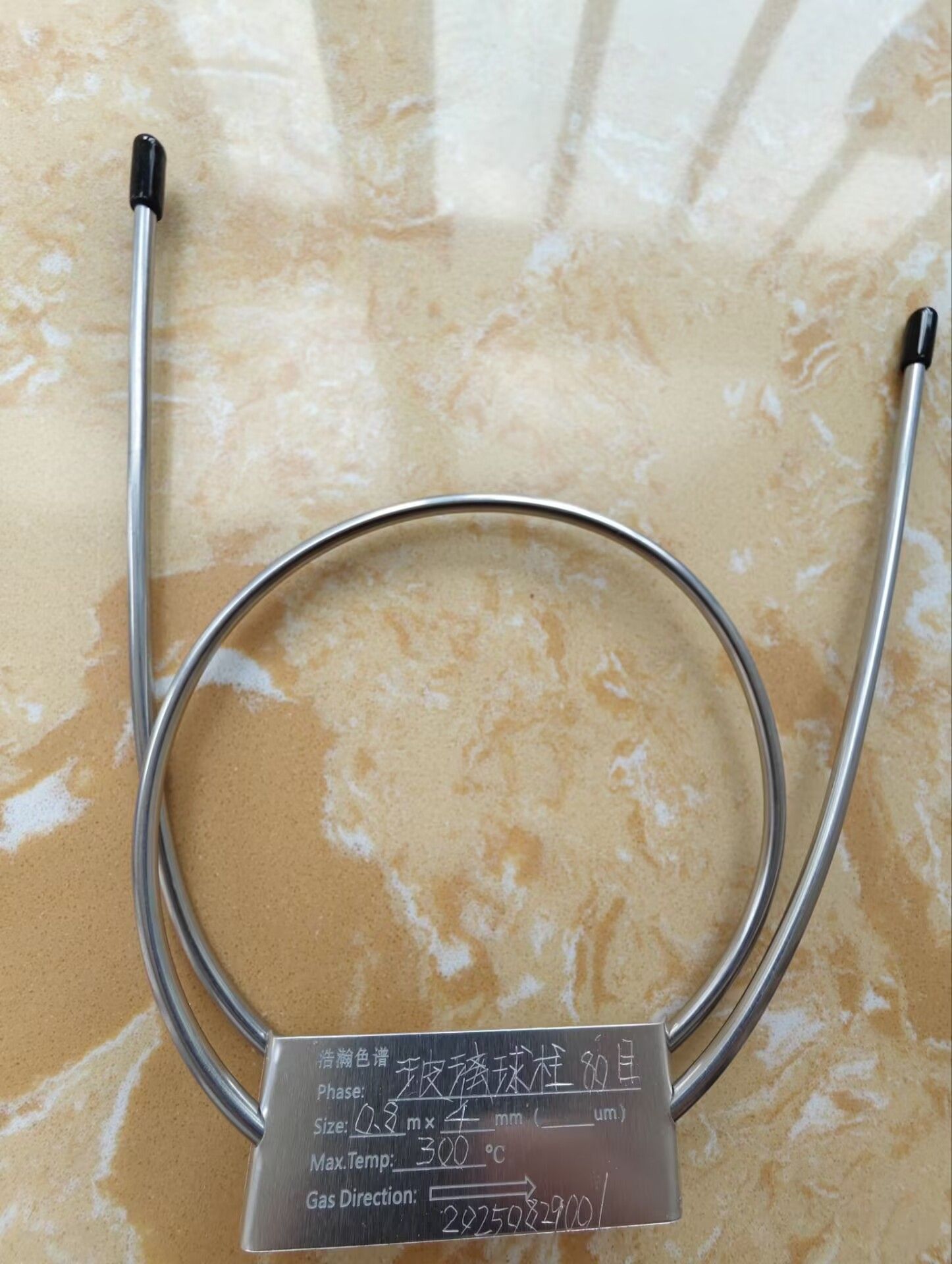

名称：玻璃球色谱柱
规格：0.8m*4mm，80目
zui高使用温度：300°C
应用：药典二氧化碳2020年版：碳氢化合物的测定

浩瀚色谱（山东）应用技术开发有限公司，研制生产的玻璃球色谱柱安装在岛津，安捷伦，赛默飞，瓦里安，布鲁克，PE等仪器上，柱效高，分离好，峰型对称，满足药典的指标要求。


适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓

The detection of hydrocarbons (calculated as methane) in carbon dioxide gas as stipulated in the Chinese Pharmacopoeia shall not exceed 0.0020% (ml/ml).
Main parameters and applications
Specification: The common chromatographic column specification is 0.8 meters (length) x 4 millimeters (outer diameter).
Filler: The filler is an 80 mesh glass ball.
Maximum operating temperature: generally between 300 ° C and 320 ° C.
Application method: This method uses gas chromatography hydrogen flame ionization detector (FID). During analysis, the column temperature, injection port temperature, and detector (FID) temperature are controlled at 110 ° C, 110 ° C, and 120 ° C, respectively. Quantification is performed using an external standard method (with methane standard gas as a control), and blank values need to be deducted.
Name: Glass Ball Chromatography Column
Specification: 0.8m * 4mm, 80 mesh
Maximum operating temperature: 300 ° C
Application: Pharmacopoeia Carbon Dioxide 2020 Edition: Determination of Hydrocarbons
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed and produced glass sphere chromatography columns that are installed on instruments such as Shimadzu, Agilent, Thermo Fisher Scientific, Varian, Bruker, PE, etc. The columns have high column efficiency, good separation, symmetrical peak shapes, and meet the requirements of pharmacopoeia.
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
