haohan发酵物体里面二氧化碳和甲烷测定甲烷转化炉联用气相色谱仪HH-790CH4-GC

浩瀚色谱（山东）应用技术开发有限公司，采用《发酵物体里面的CO2和CH4测定转化炉色谱仪》利用甲烷转化炉 + GC-FID 的方案来测定发酵真空环境中的CO₂和CH₄，是一个非常成熟、可靠且灵敏度ji高的方法。它将无法被FID检测的CO₂转化为可检测的CH₄，从而实现了用一台FID检测器同时高精度测定两种关键气体的目标，是环境、能源和科研领域气体分析的黄金标准之一。

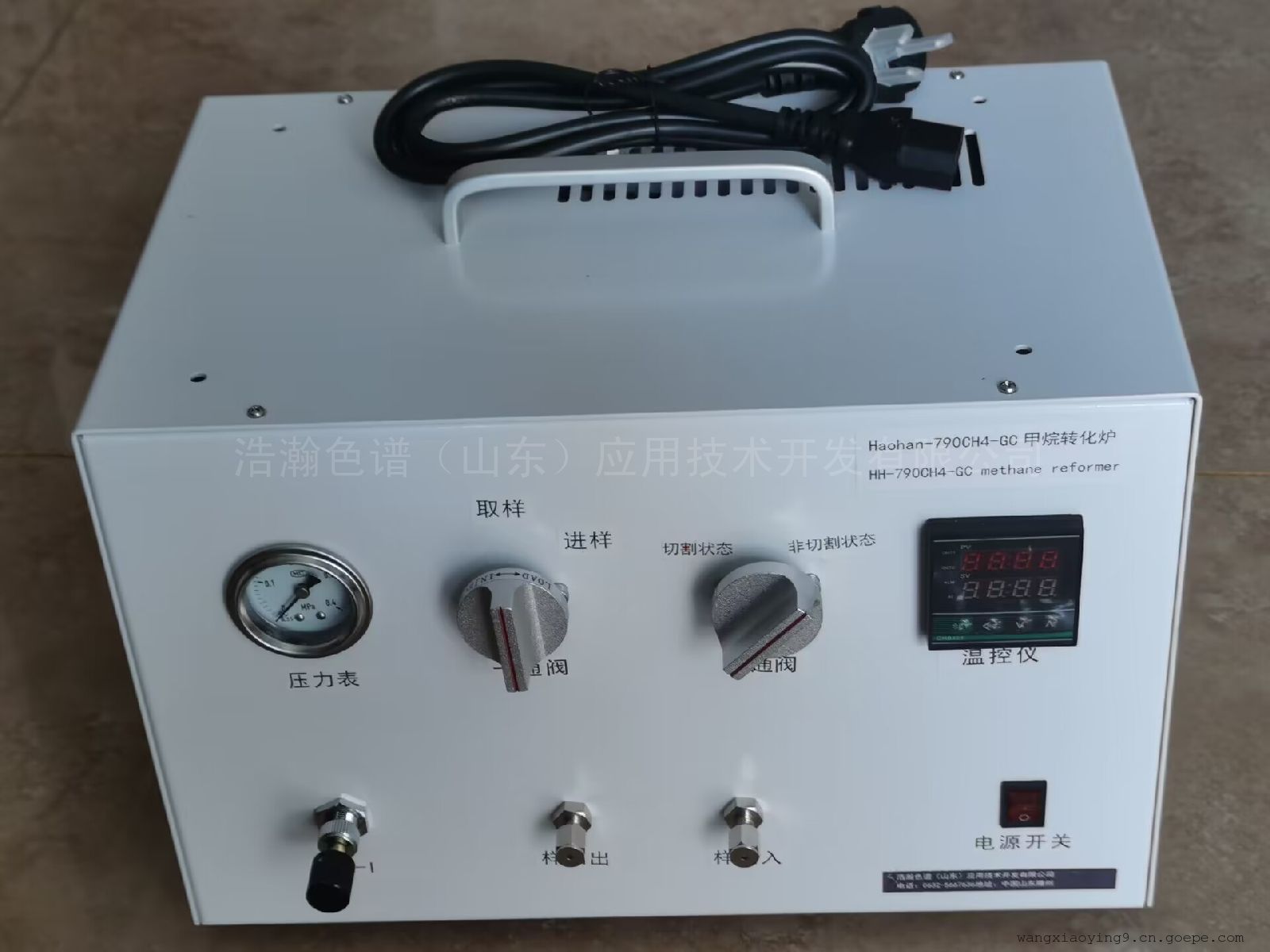

名称：甲烷转化炉

填料：镍触媒”
规格：HH-790CH4-GC

应用：发酵(真空)物体里面的二氧化碳和甲烷测定测定

特点;

1. 无需改造仪器，直接对接，省时，省力，实现不同规格型号的仪器互联互通

2. 含进样装置，色谱柱系统，温控系统，可选择中心切割技术，保护催化剂，延长使用寿命。

3. 可连接安捷伦6890/7890/7820/8860/8890；岛津GC2010/2014/2030；赛默飞1310系列；瓦里安3400系列；PE，布鲁克；磐诺A90系列；北分瑞利3400系列；福立9790系列；川仪，天瑞，天美，华爱，科晓，捷岛，

4.体积小，方便携带，安装简单：一进，一出2个接口

In the analysis of gases inside vacuum fermented objects, the methane conversion furnace is a key additional equipment for achieving high-precision and high-sensitivity determination of carbon dioxide. It is used in conjunction with FID detectors to transform the measurement problem of CO ₂ into the measurement problem of CH ₄, which FID excels in.
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. adopts the "Conversion Furnace Chromatography for CO2 and CH4 Determination in Fermentation Objects" and uses a methane conversion furnace+GC-FID scheme to determine CO ₂ and CH ₄ in the fermentation vacuum environment. It is a very mature, reliable, and highly sensitive method. It converts CO ₂, which cannot be detected by FID, into detectable CH ₄, thus achieving the goal of using one FID detector to simultaneously measure two key gases with high accuracy. It is one of the gold standards for gas analysis in the fields of environment, energy, and scientific research.
Name: Methane Converter
Filler: Nickel Catalyst
Specification: HH-790CH4-GC
Application: Determination of carbon dioxide and methane in fermented (vacuum) objects
characteristic;
No need to modify the instrument, direct docking, saving time and effort, realizing interconnection and intercommunication of instruments of different specifications and models
Equipped with an injection device, chromatographic column system, temperature control system, and optional central cutting technology to protect the catalyst and extend its service life.
Can connect to Agilent 6890/7890/7820/8860/8890; Shimadzu GC2010/2014/2030; Thermo Fisher 1310 series; Varian 3400 series; PE， Brooke; Panno A90 series; Northern Raleigh 3400 series; Fuli 9790 series; Chuan Yi, Tian Rui, Tian Mei, Hua Ai, Ke Xiao, Jie Dao,
4. Small size, easy to carry, simple installation: one in, one out 2 interfaces
