岛津GDX-102填充柱应用在安捷伦7890B上2m*4mm

GDX-102具有以下主要特性：

化学性质稳定：具有热稳定性好（*高使用温度270°C），耐腐蚀、耐辐射的特点。

物理特性：通常为白色多孔微珠，表观密度约为0.20g/ml，比表面积可达680m²/g。其粒度规格主要有60-80目、80-100目，也有一些供应40-60目和100-120目。

极性：属于非极性固定相



GDX-102色谱填料的主要应用领域包括：

应用领域	分析对象示例	说明
微量水分分析	化工产品、有机溶剂等	是其特色应用之一，可快速测定样品中微量水分，回收率较好。
酒类分析	蒸馏酒、白酒中的甲醇、杂醇油	可有效分离并测定酒中甲醇及杂醇油成分。
环境分析	环境空气中二氧化碳	用于公共场所空气质量监测等。
生物及医学样品分析	血液中乙醇测定
其他有机化合物分析	酸、醛、醇、酯类等高沸点化合物，焦炉煤气	适用于一些高沸点样品的分离。

浩瀚色谱（山东）应用技术开发有限公司,，研制生产岛津不锈钢填充色谱柱GDX-102 ，因其耐高温、惰性好、选择性特殊等特点，尤其在微量水分、酒中杂醇、空气中二氧化碳以及一些高沸点化合物的分析中表现出色，结果满意。

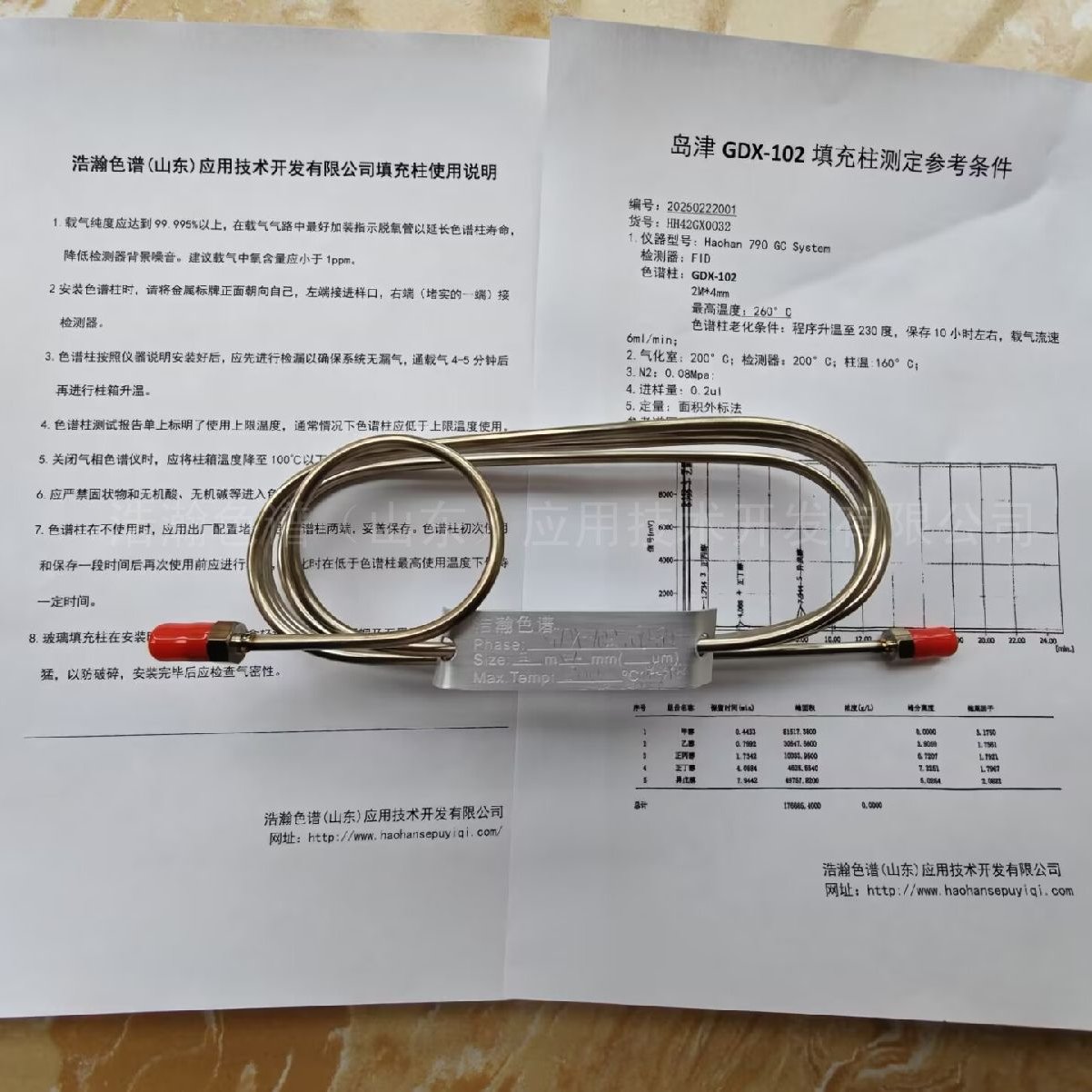

名称：岛津不锈钢填充柱

规格：2m*4mm

型号：GDX-102,60-80目

zui高使用温度：260°C

应用：

1.化工产品中微量水分测定

2.公共场所空气中二氧化碳

3.蒸馏酒中杂醇油

4.乙醇消毒剂



应用：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓

GDX-102 has the following main characteristics:
Chemical stability: It has good thermal stability (maximum operating temperature of 270 ° C), corrosion resistance, and radiation resistance.
Physical properties: Typically white porous microspheres with an apparent density of approximately 0.20g/ml and a specific surface area of up to 680m ²/g. The particle size specifications mainly include 60-80 mesh, 80-100 mesh, and some supply 40-60 mesh and 100-120 mesh.
Polarity: Belongs to non-polar stationary phase
The main application areas of GDX-102 chromatographic packing include:
Example Explanation of Application Domain Analysis Object
One of its characteristic applications is the analysis of trace moisture in chemical products and organic solvents, which can quickly determine trace moisture in samples with good recovery rates.
Alcohol analysis Methanol and fusel oil in distilled liquor and Baijiu can be effectively separated and determined.
Environmental analysis: Carbon dioxide in the ambient air is used for monitoring air quality in public places.
Analysis of biological and medical samples, determination of ethanol in blood
Other organic compounds such as acids, aldehydes, alcohols, esters, and other high boiling point compounds can be analyzed, and coke oven gas is suitable for the separation of some high boiling point samples.
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed and produced Shimadzu stainless steel packed chromatography column GDX-102. Due to its high temperature resistance, good inertness, and special selectivity, it has shown excellent performance in the analysis of trace moisture, impurities in wine, carbon dioxide in air, and some high boiling point compounds, with satisfactory results.
Name: Shimadzu Stainless Steel Filled Column
Specification: 2m * 4mm
Model: GDX-102, 60-80 mesh
Maximum operating temperature: 260 ° C
Application:
1. Determination of trace moisture in chemical products
2. Carbon dioxide in the air of public places
3. Blended alcohol oil in distilled spirits
4. Ethanol disinfectant
Application:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
