浩瀚SE-30毛细管柱应用在安捷伦岛津赛默飞PE30m*0.22mm*0.25um

SE30是非极性、低流失气相色谱柱，可在高温条件下使用。

主要应用领域
SE-30的“通用性”是其*大优势，尤其在以下领域表现出色：
1. 石油化工和烃类分析
这是SE-30*传统和*主要的应用领域。
石油烃组成分析 (PONA分析)：用于分析石脑油、汽油中的链烷烃、烯烃、环烷烃和芳烃。
溶剂分析：用于分析各种混合溶剂，如油漆稀释剂等。
单体烃的定性与定量。
2. 环境分析
多环芳烃 (PAHs)：SE-30是分析PAHs（如萘、蒽、菲、苯并芘等）的优选柱之一，能提供良好的分离。
有机氯农药 (OCPs)：如滴滴涕、六六六等。由于其惰性，可以有效减少这些极性农药的分解和拖尾。
多氯联苯 (PCBs)：对PCB同系物和 congeners 有较好的分离能力。
3. 食品和香料分析
脂肪酸甲酯 (FAMEs)：用于分析动植物油、生物柴油中的脂肪酸组成。
香精香料：许多香料成分是萜烯类化合物，沸点差异是主要分离依据，SE-30非常适用。
食品中的污染物：如塑化剂（邻苯二甲酸酯）的筛查。
4. 药物和临床化学
药物纯度检查：尤其适用于非极性或弱极性的药物及其中间体。
血液中酒精浓度测定。
甾体类化合物：虽然极性更强的柱子可能分离更好，但对于某些非极性甾体，SE-30仍可使用。
5. 法医和毒物学
滥用药物筛查：如大麻中的 cannabinoids、可卡因等。
纵火剂残留分析：汽油、煤油等助燃剂的成分分析。

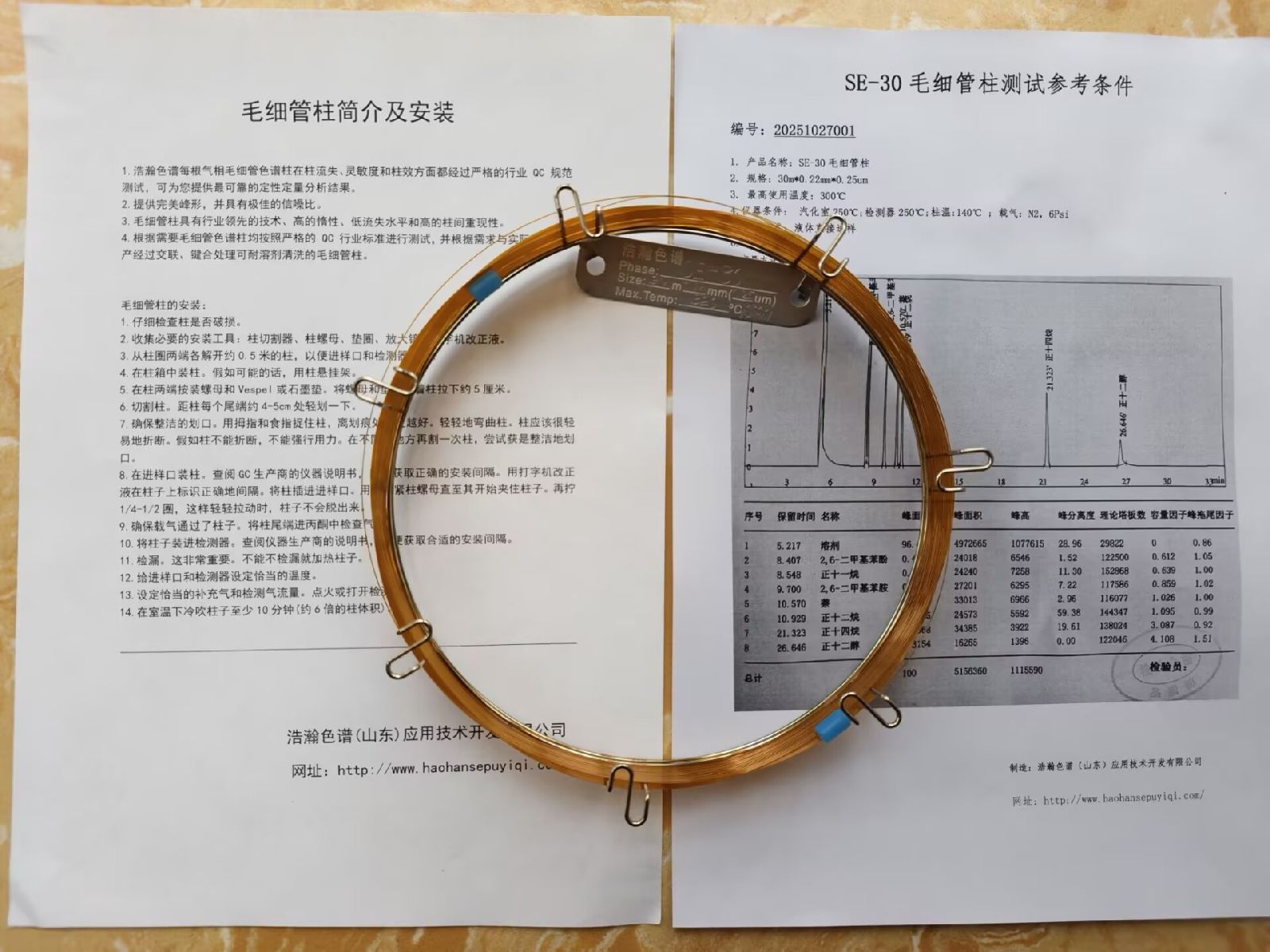

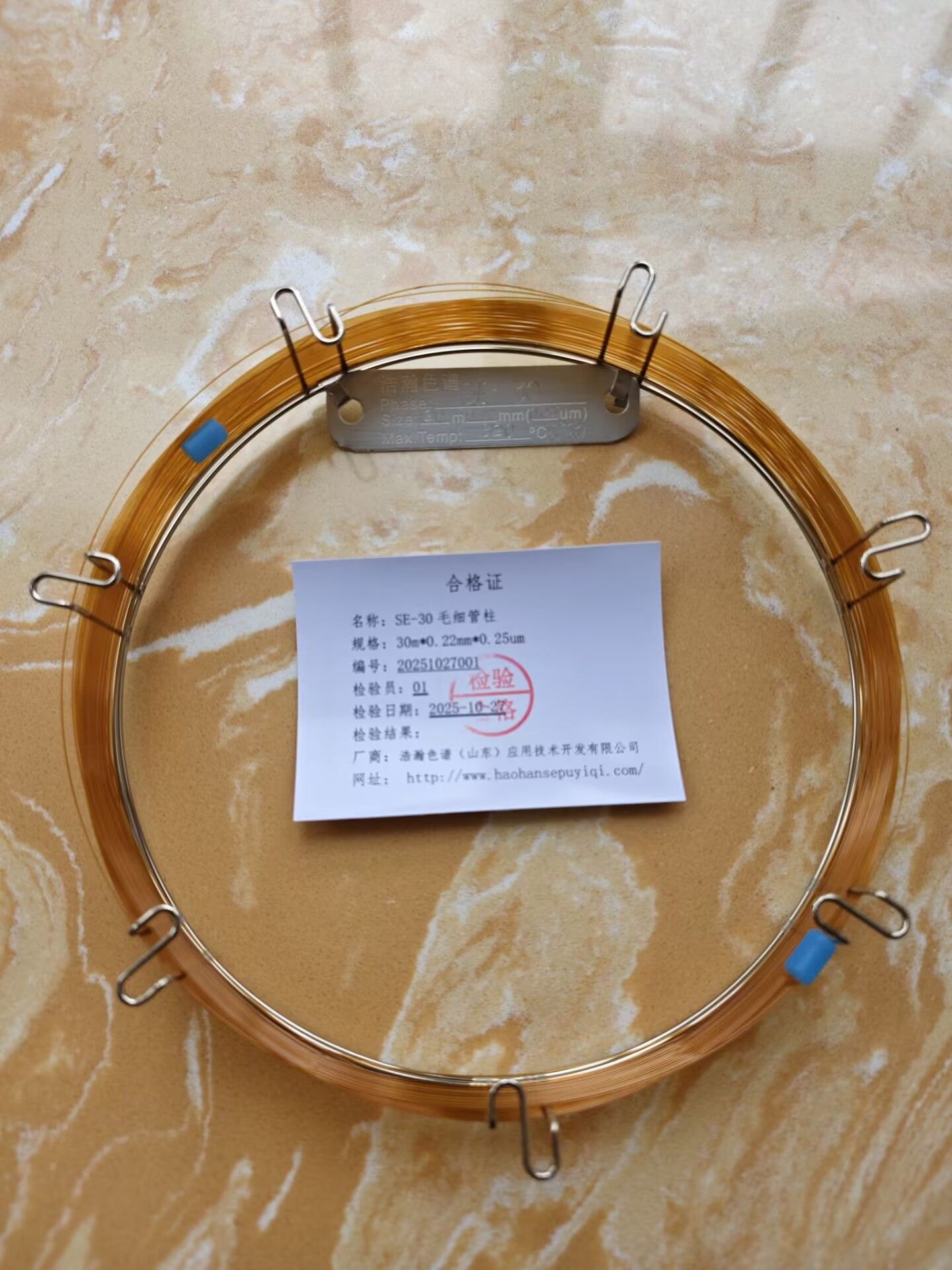

名称：毛细管柱

型号：SE-30

规格：30m*0.22mm*0.25um

ZUI高温度：320°C



浩瀚色谱（山东）应用技术开发有限公司，研制《SE-30毛细管色谱柱应用岛津GC2010 》是一款应用广的通用型非极性色谱柱。 它是建立气相色谱方法的良好起点，特别适合于烃类、农药残留、香精香料和石油化工产品的分析。





适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓


SE30 is a non-polar, low bleed gas chromatography column suitable for use under high-temperature conditions.
Main application areas
The "versatility" of SE-30 is its greatest advantage, particularly excelling in the following areas:
1. Petrochemical and Hydrocarbon Analysis
This is the most traditional and primary application field of SE-30.
PONA Analysis (Petrogenetic Hydrocarbon Analysis): Used to analyze n-alkanes, olefins, cycloalkanes, and aromatics in naphtha and gasoline.
Solvent Analysis: Used for analyzing various mixed solvents, such as paint thinners, etc.
Qualitative and quantitative analysis of monomeric hydrocarbons.
2. Environmental Analysis
Polycyclic aromatic hydrocarbons (PAHs): SE-30 is one of the preferred columns for analyzing PAHs (such as naphthalene, anthracene, phenanthrene, benzo[a]pyrene, etc.), providing excellent separation.
Organochlorine pesticides (OCPs): such as DDT and BHC. Due to their inertness, they can effectively reduce the decomposition and tailing of these highly polar pesticides.
Polychlorinated biphenyls (PCBs): exhibit excellent separation capability for PCB homologs and congeners.
3. Food and Spice Analysis
Fatty Acid Methyl Esters (FAMEs): Used for analyzing the fatty acid composition in animal and vegetable oils, as well as biodiesel.
```Essence and Flavoring: Many flavoring components are terpenes, and the difference in boiling points serves as the primary basis for separation, making SE-30 highly suitable.```.
Screening for contaminants in food: such as plasticizers (phthalates).
4. Drugs and Clinical Chemistry
Drug purity testing: Particularly suitable for non-polar or weakly polar drugs and their intermediates.
Measurement of blood alcohol concentration.
Steroidal compounds: Although columns with stronger polarity may offer better separation, SE-30 can still be used for certain non-polar steroids.
5. Forensic Medicine and Toxicology
Drug abuse screening: such as cannabinoids in cannabis, cocaine, and others.
Residual Analysis of Incendiary Agents: Component Analysis of Combustion Assistants Such as Gasoline and Kerosene.
Name: Capillary column
Model: SE-30
Specifications: 30m * 0.22mm * 0.25um
Maximum temperature: 320°C
Hanhan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed the "SE-30 Capillary Column for Shimadzu GC2010," a widely used universal non-polar chromatographic column. It serves as an excellent foundation for establishing gas chromatography methods and is particularly suitable for analyzing hydrocarbons, pesticide residues, flavorings, and petrochemical products.
Applicable to:
Agilent 490 Online/Portable, 4890, 5890, 6890, 7820, 7890, 8860, 8890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310, 1300, 1610, 1600
Valian 3800 Series
Brook PE580, 590, 680, 690
PanNuo A90, Fuli GC9790, HuaAi, TianRui, TianMei, GC7900, ChuanYi, Beifen RuiLi, DongXi Electronics, Lunan Ruihong, Jiedao/Kexiao
