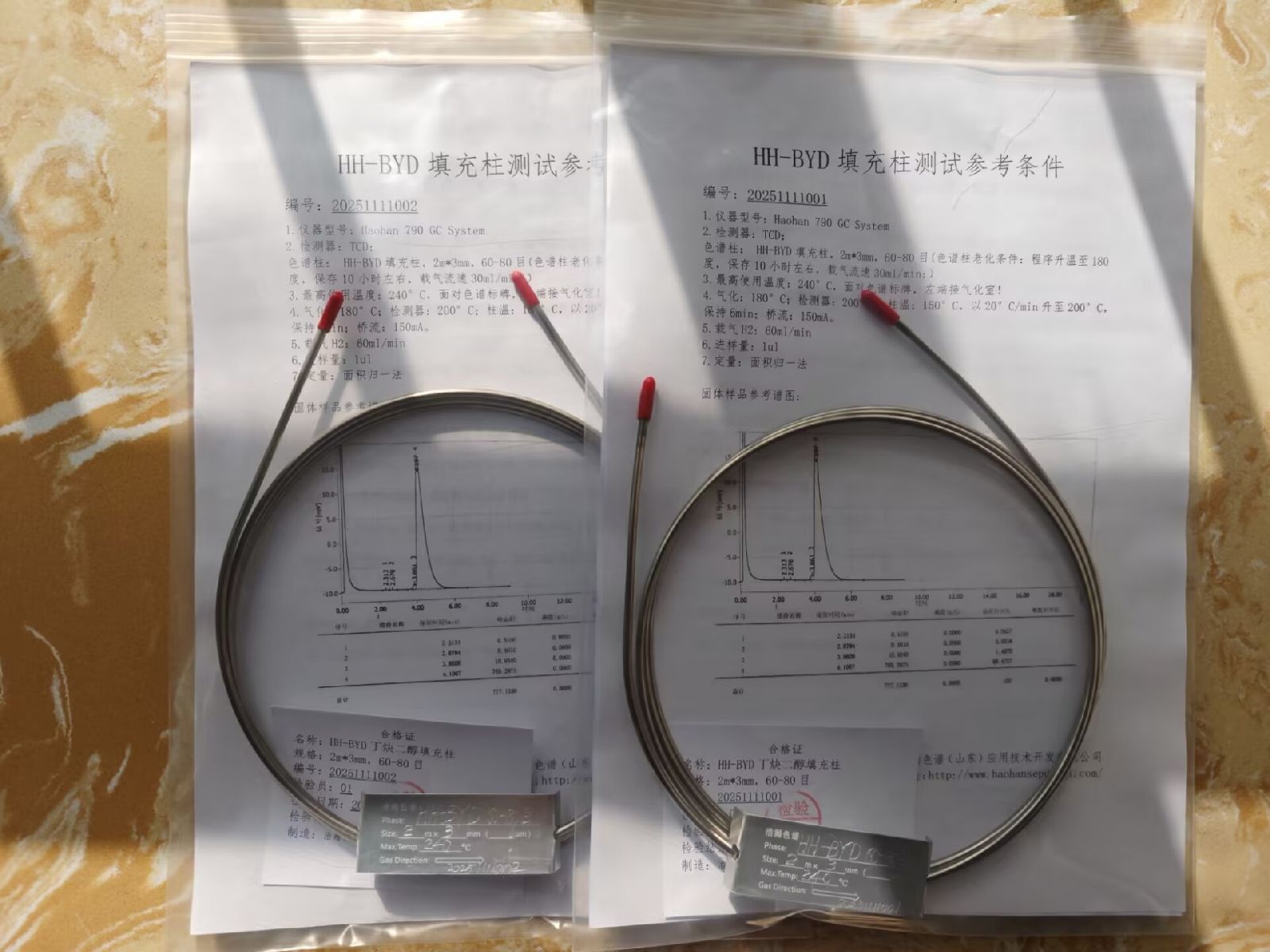

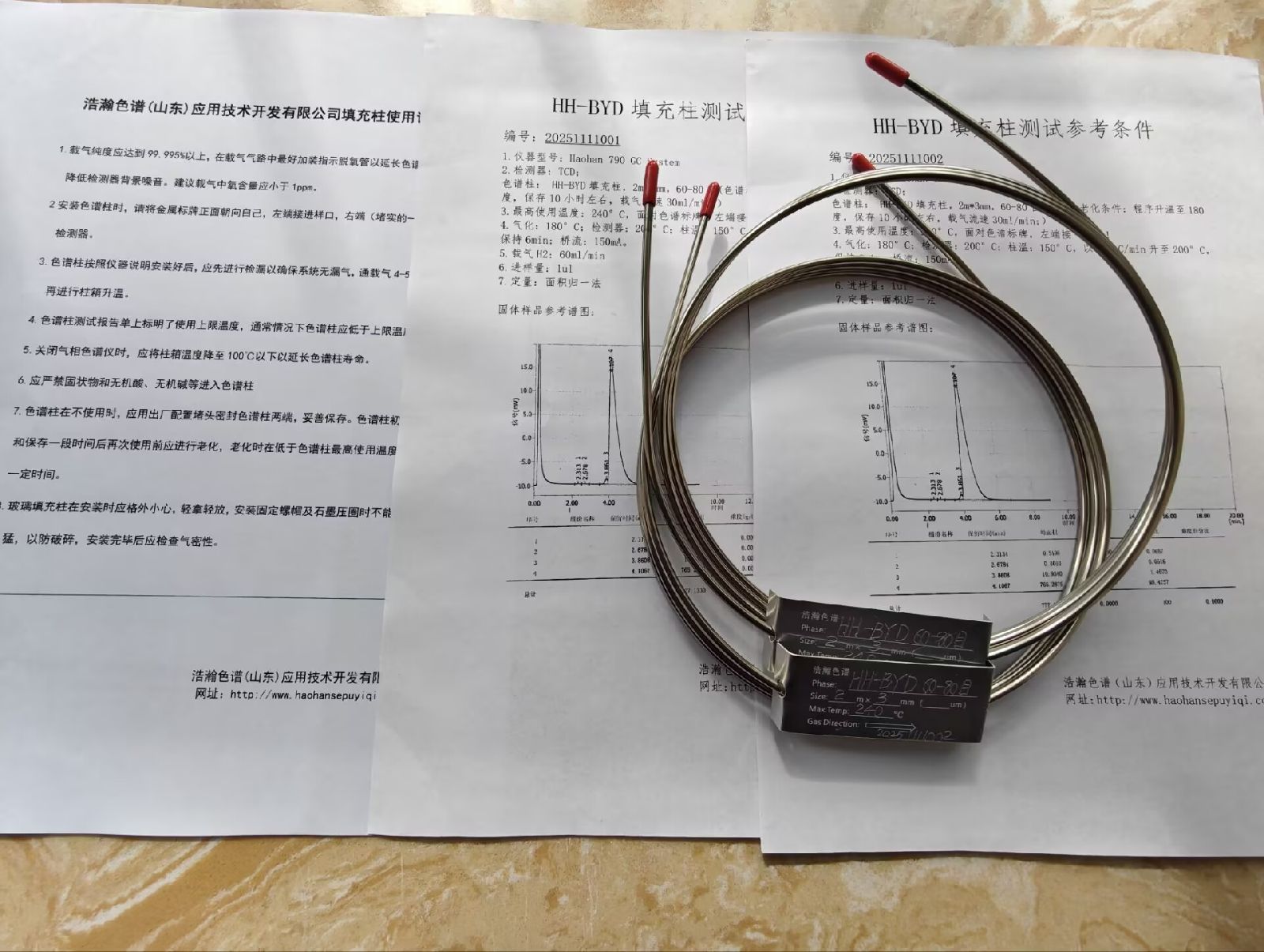

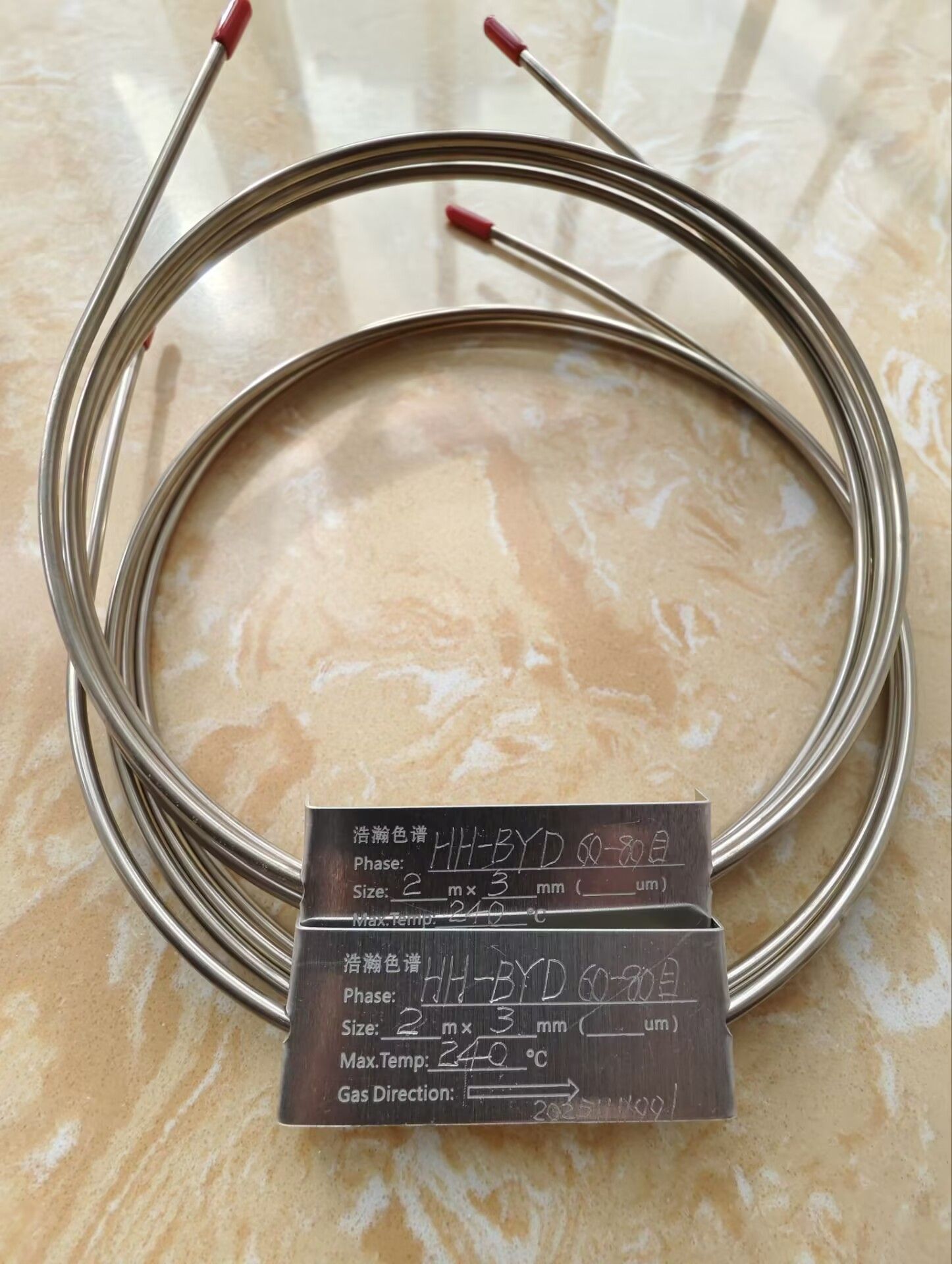

haohan丁炔二醇测定专用填充柱应用在赛默飞1300上HH-BYD

名称：丁炔二醇填充柱

编号：20251111001

型号：HH-BYD

规格：2M*3MM，60-80目

zui高使用温度：240°C

适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓


1,4-Butynediol is an organic compound with the chemical formula C4H6O2. It appears as a white to faintly yellow crystalline powder, readily soluble in water, methanol, and ethanol, but insoluble in acetone, benzene, and chloroform. It is primarily used in organic synthesis and also serves as a brightener in electroplating.
Hao Hanchrom (Shandong) Application Technology Development Co., Ltd. employed a packed column with HH-BDY as the stationary phase and H2 as the carrier gas. Using gas chromatography with a TCD detector, the separation of 1,4-butyne-diol and secondary separated components was achieved. The resolution of the chromatographic column served as the indicator for separation efficiency. The effects of column temperature and carrier gas flow rate on resolution were studied to determine the optimal operating conditions.
Name: Diethylene Glycol Filled Column
Number: 20251111001
Model: HH-BYD
Specifications: 2M*3MM, 60-80 mesh
Maximum operating temperature: 240°C
Suitable for:
Agilent 490 Online/Portable, 4890, 5890, 6890, 7820, 7890, 8860, 8890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher 1310, 1300, 1610, 1600
Warion 3800 Series
Brook PE580, 590, 680, 690
Pannuo A90, Fulai GC9790, Hua'ai, Tiannui, Tianmei, GC7900, Chuanyi, Beifeng Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
