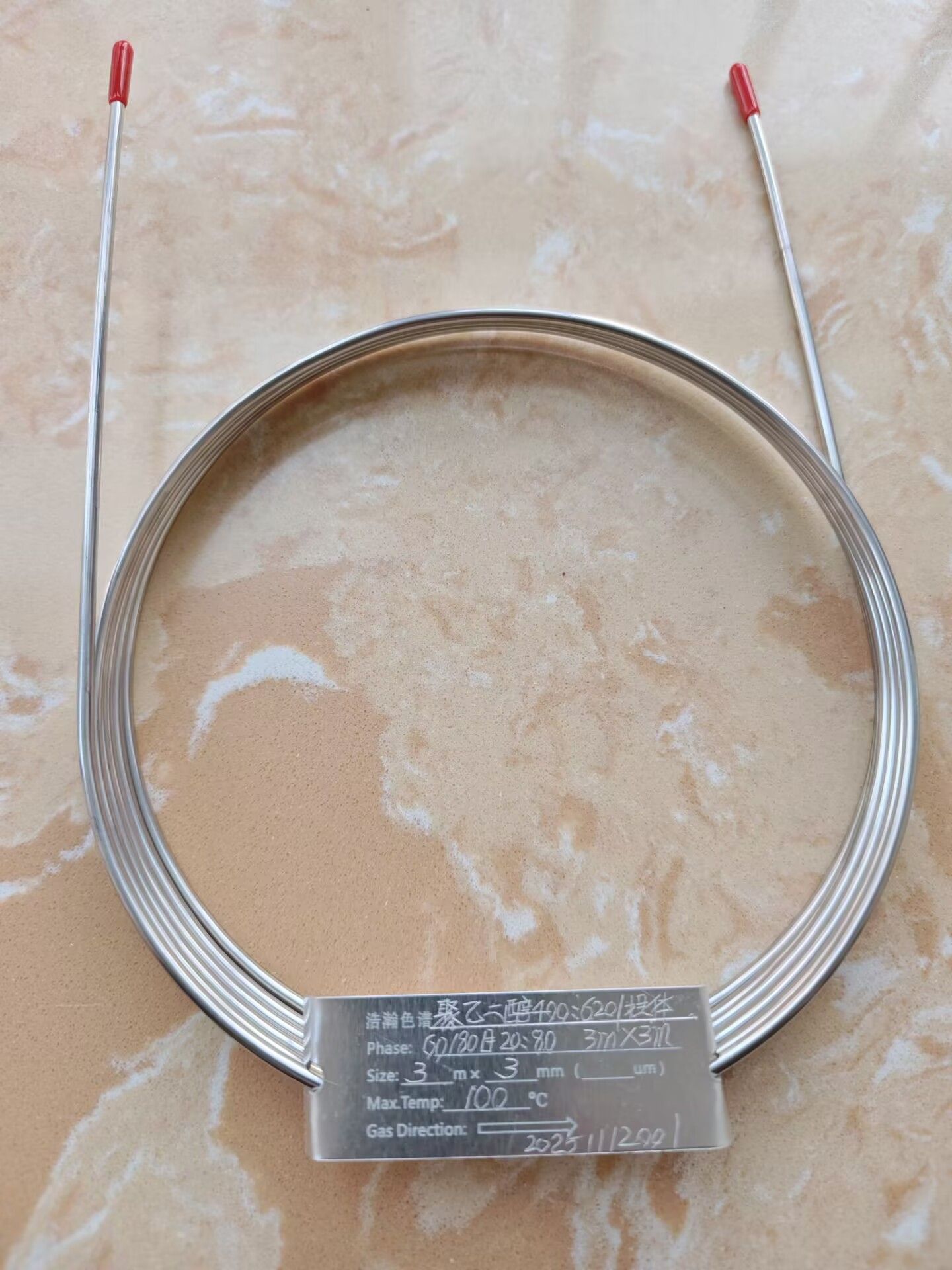

浩瀚20%聚乙二醇400/6201填充柱应用在安捷伦8890上3m*3mm

聚乙二醇-400填充柱”
以聚乙二醇-400（PEG-400）作为固定相，涂渍在惰性固体载体上，并填充在金属或玻璃管中制成的气相色谱柱。
核心组成部分
一个完整的聚乙二醇-400填充柱由三部分构成：
柱管：通常为不锈钢或玻璃材质，长度一般在1-3米，内径2-4毫米。
载体：一种化学惰性、多孔性的固体颗粒，作用是承载固定液。常用的有：
Chromosorb W：白色硅藻土载体，惰性好，适用于极性固定液和分析极性样品。
Chromosorb P：红色硅藻土载体，吸附性稍强。
玻璃微球：非硅藻土载体，吸附性极低。
固定相：聚乙二醇-400。
PEG-400 是一种平均分子量为400的聚乙二醇，在室温下为液体。
它是一种极性的固定相，其分离机理主要基于物质与固定相之间的氢键作用力和偶极-偶极相互作用。


名称：气相色谱柱

规格：聚乙二醇400：6201担体(60-80目)20:80

型号：PEG-400/6201; 3M*3MM

编号：20251112001

zui高温度：100°C

应用：酸，醛，醇，酯，苯系物，杂醇油





适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓

浩瀚色谱研制的PEG400填充柱的主要特点：
极性：属于中强极性固定相。
“通用型”极性柱：因其良好的分离效果和适中的价格，在过去几十年中被广泛应用。
*高使用温度：相对较低，通常为70-120°C。这是因为PEG-400分子量较小，蒸气压较高，温度过高会导致固定液流失严重，基线不稳，柱寿命缩短。
应用范围：特别适用于分离极性化合物和可形成氢键的化合物。



Polyethylene glycol 400 packed column
A gas chromatography column made by coating PEG-400 as a stationary phase on an inert solid carrier and filling it in a metal or glass tube.
Core components
A complete polyethylene glycol-400 packed column consists of three parts:
Column tube: usually made of stainless steel or glass material, with a length of 1-3 meters and an inner diameter of 2-4 millimeters.
Carrier: A chemically inert, porous solid particle used to carry a fixative. Commonly used ones include:
Chromosorb W: a white diatomaceous earth carrier with good inertness, suitable for polar fixatives and analysis of polar samples.
Chromosorb P: a red diatomaceous earth carrier with slightly stronger adsorption properties.
Glass microspheres: Non diatomaceous earth carrier, with extremely low adsorption capacity.
Fixed phase: Polyethylene glycol-400.
PEG-400 is a polyethylene glycol with an average molecular weight of 400, which is liquid at room temperature.
It is a polar stationary phase, and its separation mechanism is mainly based on hydrogen bonding forces and dipole dipole interactions between the substance and the stationary phase.
Name: Gas Chromatography Column
Specification: Polyethylene glycol 400:6201 support (60-80 mesh) 20:80
Model: PEG-400/6201;  3M*3MM
Number: 20251112001
Zui high temperature: 100 ° C
Applications: acids, aldehydes, alcohols, esters, benzene derivatives, fusel oils
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
The main features of the PEG400 packed column developed by Haohan Chromatography are:
Polarity: Belongs to the fixed phase of medium strong polarity.
Universal polarity column: Due to its excellent separation effect and moderate price, it has been widely used in the past few decades.
Maximum operating temperature: relatively low, usually 70-120 ° C. This is because PEG-400 has a small molecular weight and high vapor pressure. Excessive temperature can cause severe loss of fixative, unstable baseline, and shortened column life.
Application scope: Especially suitable for separating polar compounds and compounds that can form hydrogen bonds.
