碳氢化合物照气相色谱法(通则0521)测定供试品气体取本品,即得对照品气体取甲烷含量为0.0020%的气体(以氮气为稀释剂)。色谱条件用玻璃球为填料的色谱柱(4mm×0.8m,80目);柱温为110℃;进样口温度为110℃;检测器为火焰离子化检测器,温度为120℃测定法精密量取供试品气体与对照品气体,分别注入气相色谱仪,在净化温度为360℃时测得的峰面积为相应空白值;精密量取供试品气体与对照品气体,分别注入气相色谱仪,测定峰面积,减去相应空白值后的峰面积为校正峰面积限度按外标法以校正峰面积计算,含碳氢化合物(以甲烷计)不得过0.0020%。

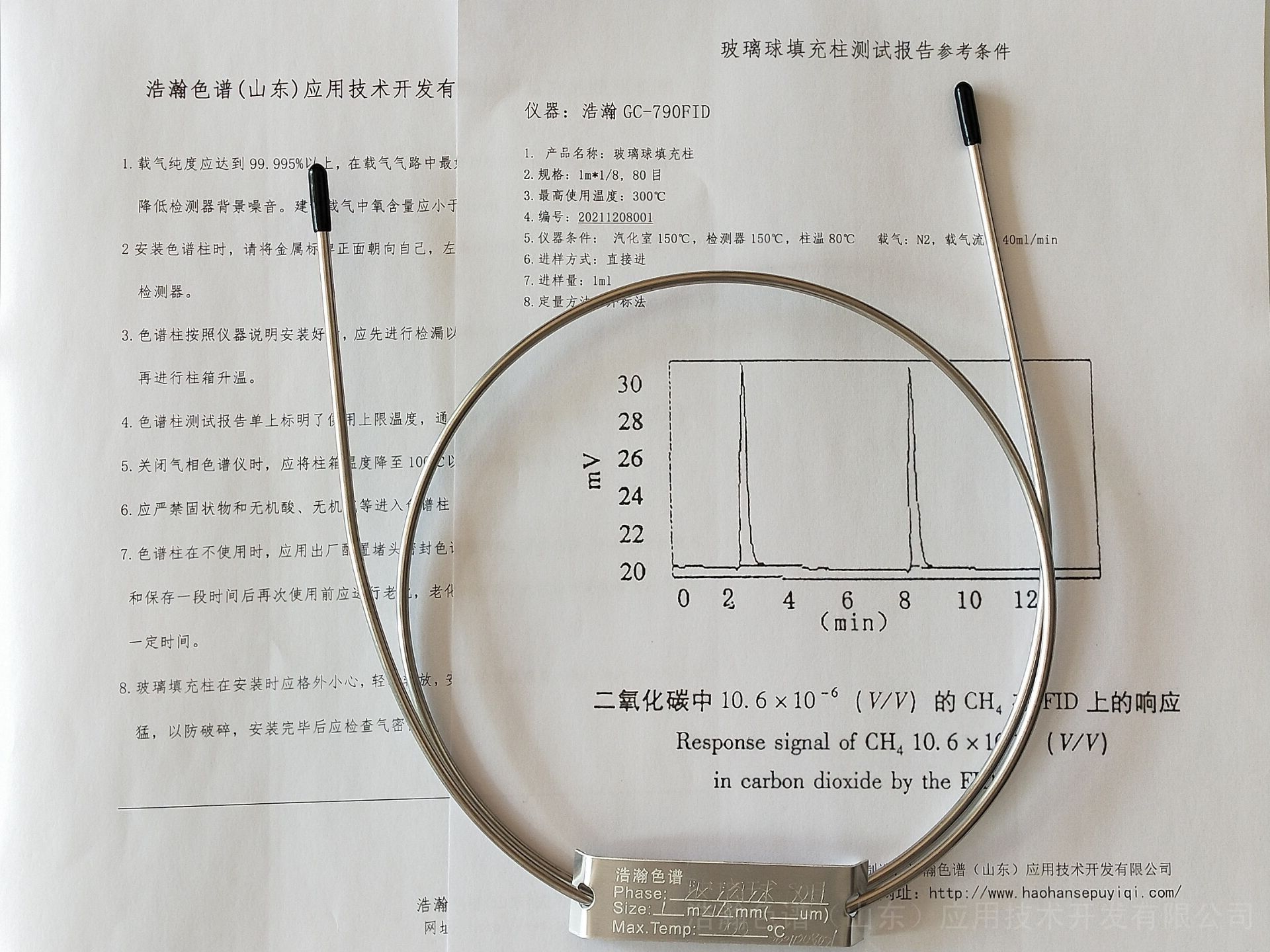

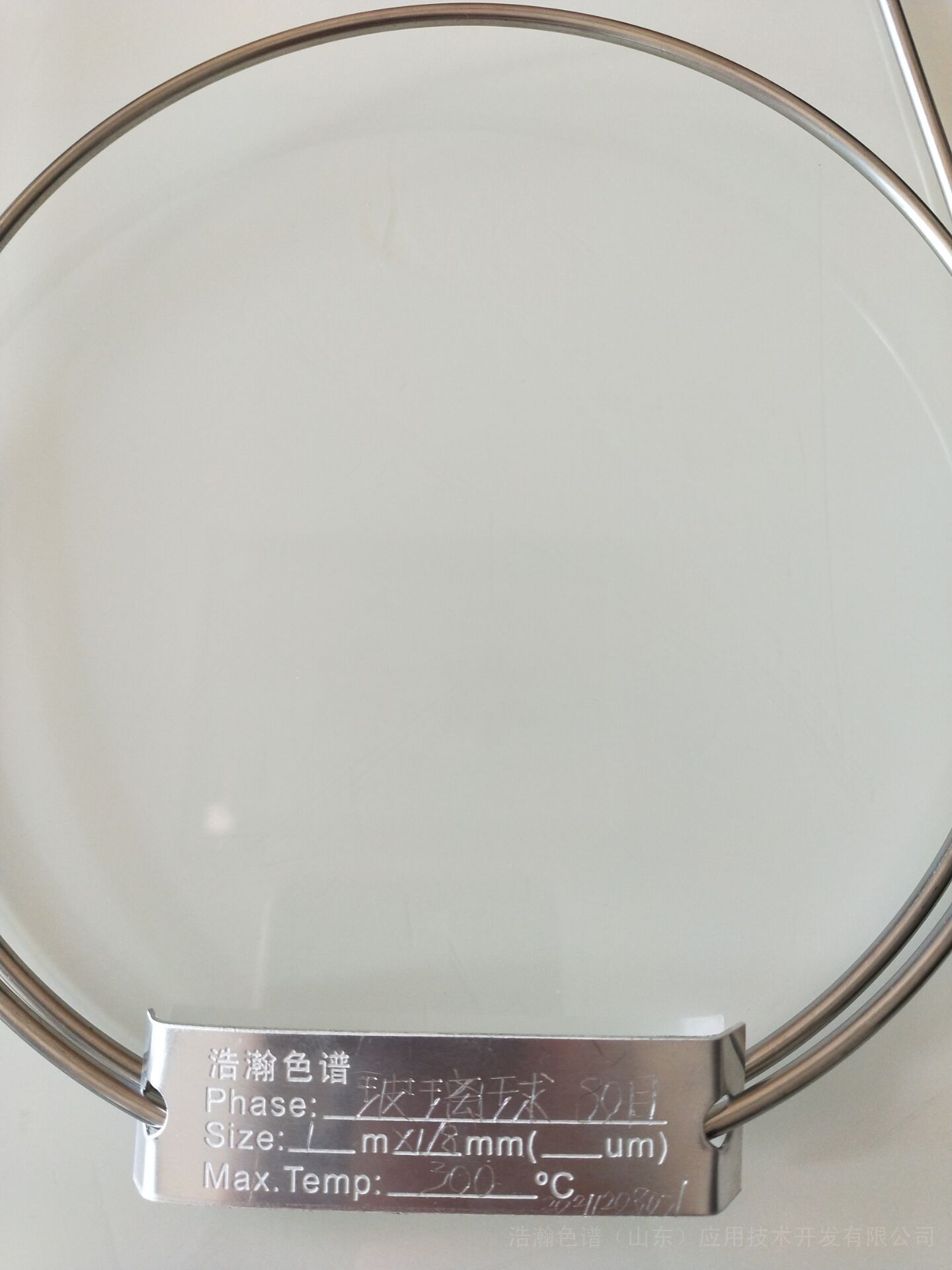

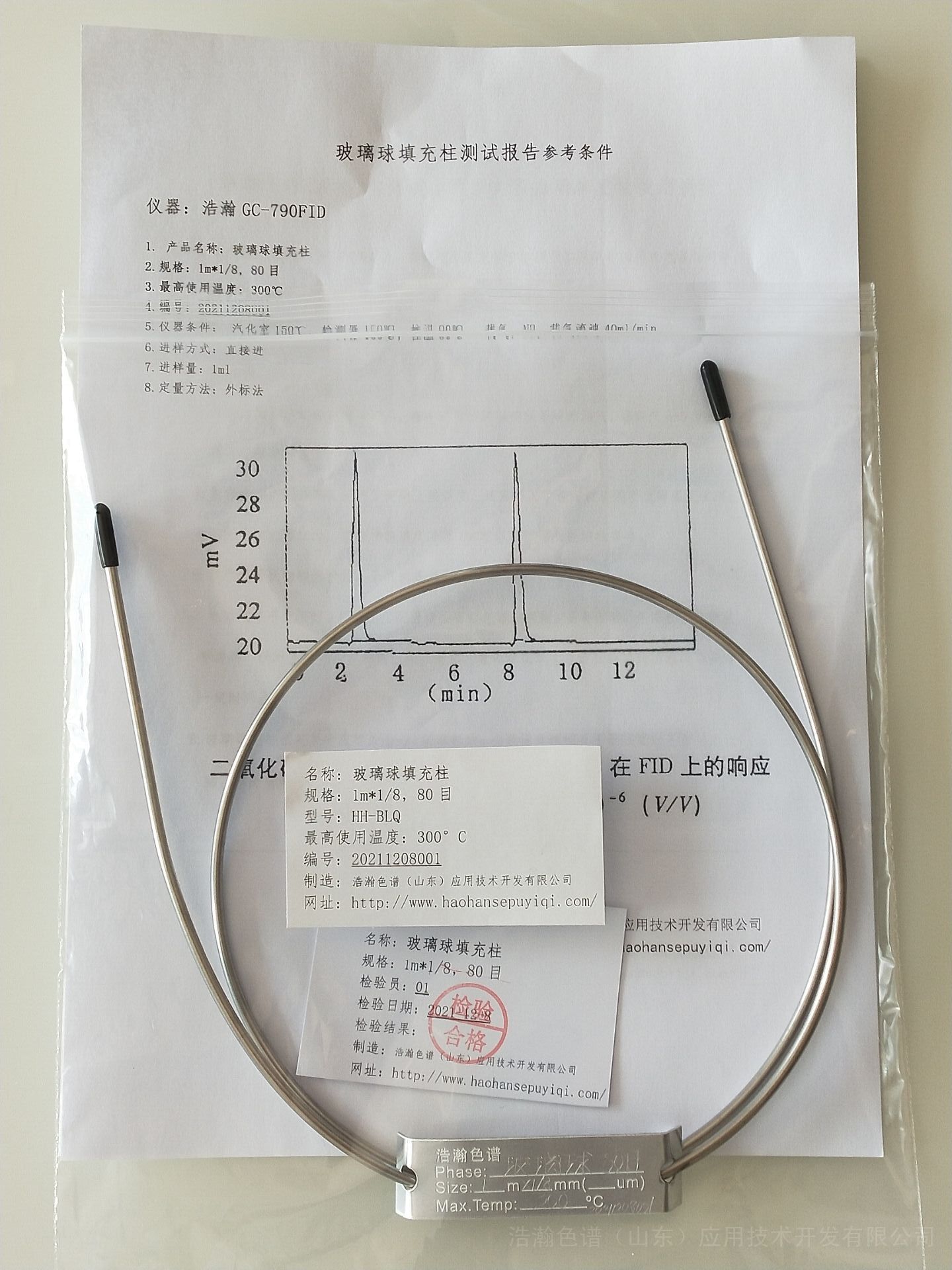

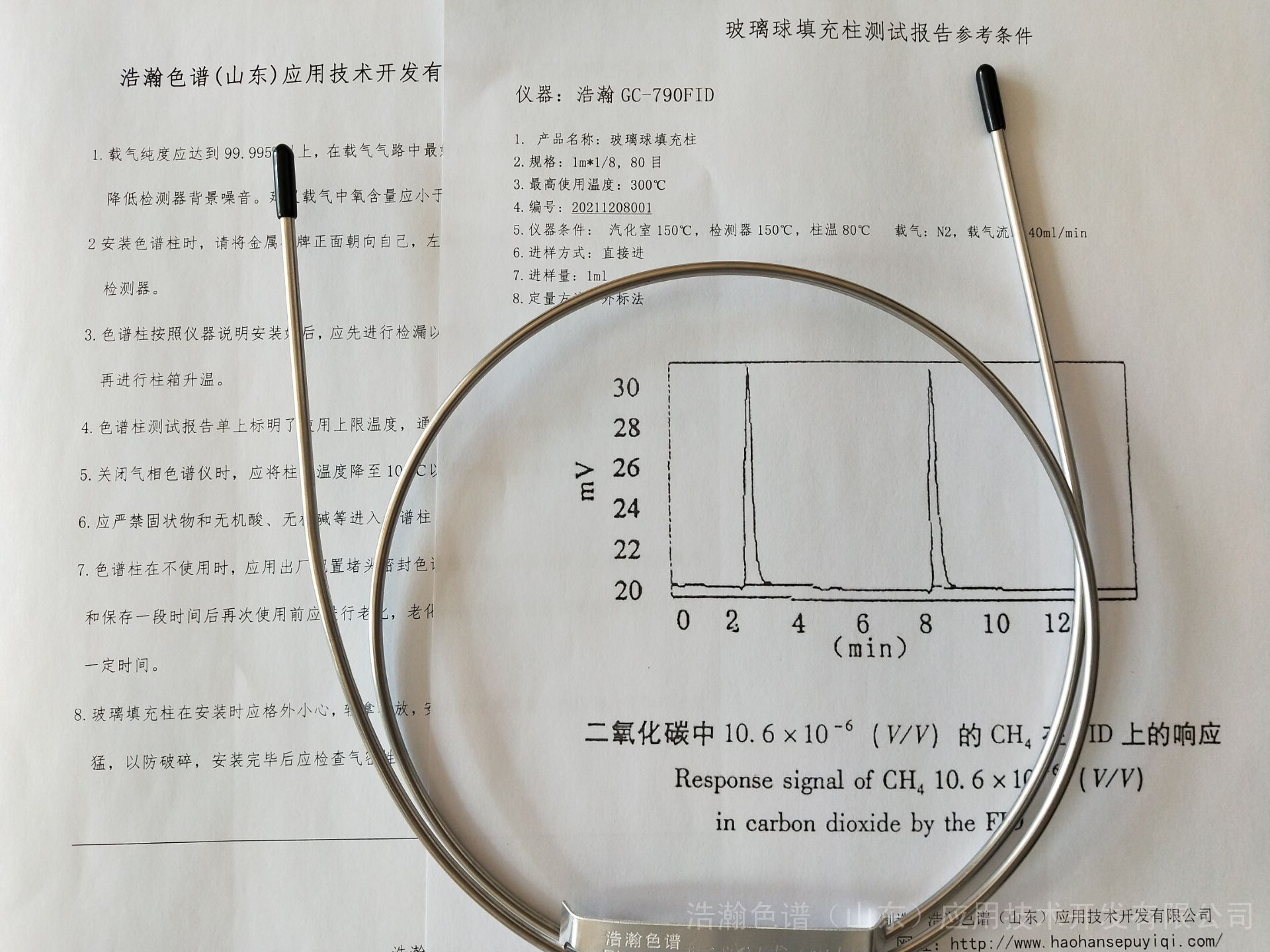

名称：玻璃球柱
规格：1m*1/8（80目，安捷伦，岛津，赛默飞，瓦里安，布鲁克，PE等英制尺寸）
型号：HH-BLQ
应用：中国药典2020版--二氧化碳中碳氢化合物的测定
浩瀚色谱（山东）应用技术开发有限公司，与时俱进，根据仪器的结构特点，生产出满足安捷伦7890B气相色谱仪用的玻璃球填充柱1M*1/8，英寸尺寸，无需配置转换头。浩瀚色谱·，掌握核心科技。
Hydrocarbons are determined according to gas chromatography (General Principle 0521). Take this product as the test sample gas, that is, the reference sample gas should be a gas with a methane content of 0.0020% (with nitrogen as a diluent). Chromatographic conditions use a chromatographic column filled with glass balls (4mm×0.8m, 80 mesh); the column temperature is 110℃; the temperature of the injection port is 110℃; the detector is a flame ionization detector, and the temperature is 120℃. The method is precise. Measure the test gas and reference gas and inject them into the gas chromatograph respectively. The peak area measured when the purification temperature is 360°C is the corresponding blank value; accurately measure the test gas and reference gas and inject them into the gas chromatograph. The peak area is determined by the instrument, and the peak area after subtracting the corresponding blank value is the calibrated peak area limit. The peak area is calculated by the external standard method, and the hydrocarbon content (calculated as methane) shall not exceed 0.0020%.
Name: Glass Ball Column
Specifications: 1m*1/8 (80 mesh, Agilent, Shimadzu, Thermo Fisher, Varian, Brook, PE and other inch sizes)
Model: HH-BLQ
Application: Chinese Pharmacopoeia 2020 Edition-Determination of Hydrocarbons in Carbon Dioxide
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. keeps pace with the times. According to the structural characteristics of the instrument, it produces a glass ball packed column 1M*1/8 inch size, which is suitable for the Agilent 7890B gas chromatograph, without the need to configure a conversion head. Haohan Chromatography·Master the core technology.
