Shimadzu岛津MS-13X填充柱安装在GC2014上测定甲烷3.2*2.1mm，3.0M，80-100Mesh

13X分子筛是一种人工合成的多孔硅铝酸盐晶体，化学式为Na₂O·Al₂O₃·XSiO₂·(6-7)H₂O（SiO₂/Al₂O₃≈2.4～3），具有10Å的均匀孔径结构。其蜂窝状构型通过微孔形成筛分效应，可选择性吸附直径小于10Å的分子。该产品在石化领域用于气体深度干燥与脱硫，在环保领域可脱除VOCs，并广泛应用于空分装置气体净化。制备工艺包含水热合成与煤矸石煅烧法，成品具备>900m²/g比表面积和≥90%苯吸附率

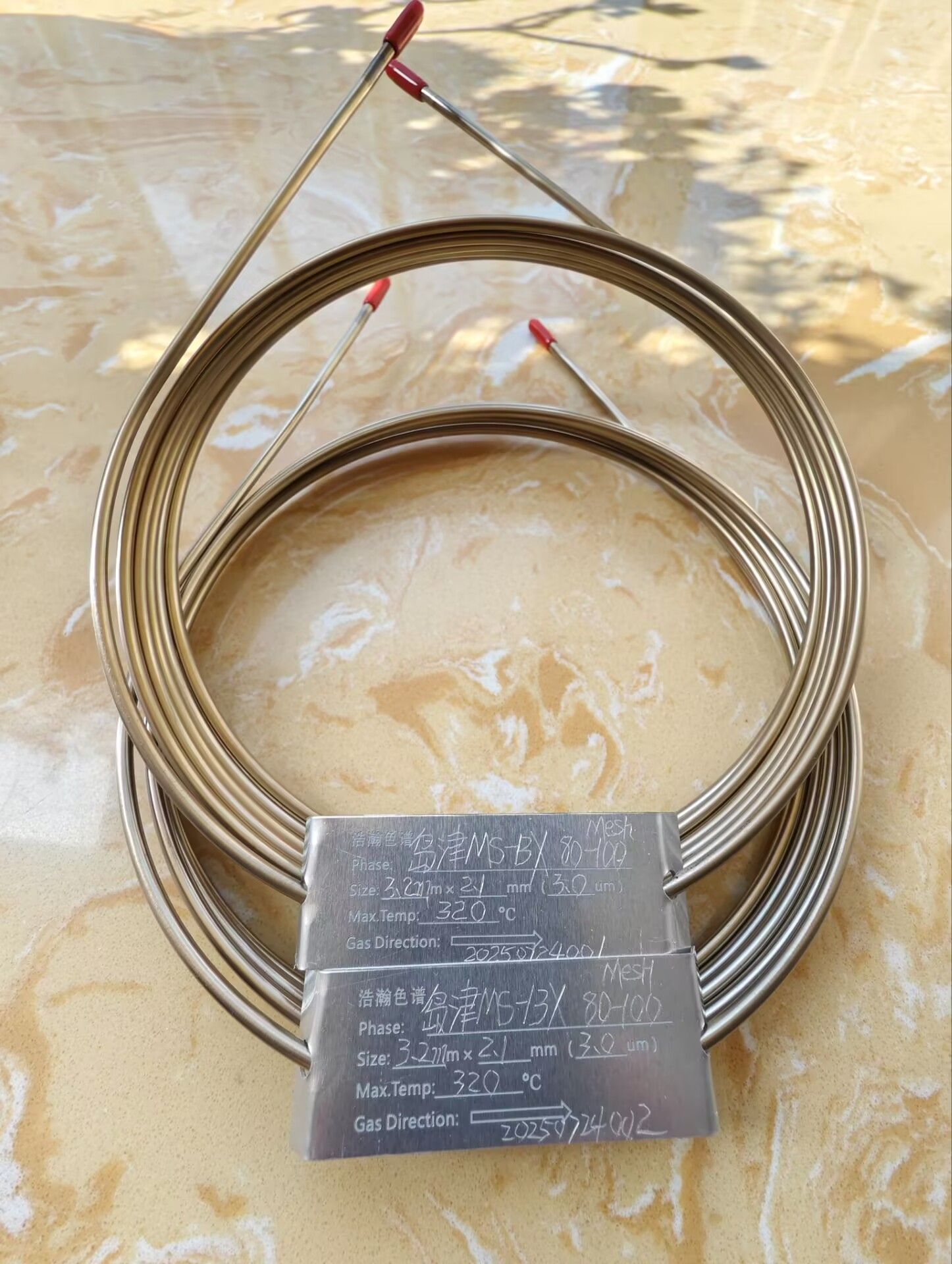

名称：岛津MS-13X填充柱

规格：3.2*2.1mm，3.0M，80-100Mesh

使用温度：320°C

分离：氢，氧，氮，一氧化碳，甲烷



适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓



浩瀚色谱（山东）应用技术开发有限公司，研制岛津MS-13X分子筛填充色谱柱应用GC2030 ，柱效高，分离好，氢，氮，氧，一氧化碳，甲烷，效率高，效果良好。



13X molecular sieve is an artificially synthesized porous aluminosilicate crystal with the chemical formula Na ₂ O · Al ₂ O ∝· XSiO ₂ · (6-7) H ₂ O (SiO ₂/Al ₂ O ∝ ≈ 2.4-3), possessing a uniform pore size structure of 10 Å. Its honeycomb structure forms a sieving effect through micropores, which can selectively adsorb molecules with a diameter less than 10 Å. This product is used for deep gas drying and desulfurization in the petrochemical industry, and can remove VOCs in the environmental protection field. It is widely used for gas purification in air separation units. The preparation process includes hydrothermal synthesis and coal gangue calcination, and the finished product has a specific surface area of>900m ²/g and a benzene adsorption rate of ≥ 90%
Name: Shimadzu MS-13X Filler Column
Specification: 3.2 * 2.1mm, 3.0M, 80-100Mesh
Operating temperature: 320 ° C
Separation: hydrogen, oxygen, nitrogen, carbon monoxide, methane
Applicable to:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed the Shimadzu MS-13X molecular sieve packed chromatography column GC2030, which has high column efficiency and good separation of hydrogen, nitrogen, oxygen, carbon monoxide, and methane.
