浩瀚Tenax-TA填充柱应用在安捷伦岛津赛默飞PE瓦里安布鲁克Φ3mm× 1.5m

TENAX-TA 的 化学名称是 2,6-二苯呋喃多孔聚合物（2,6-diphenyl furan porous polymer resin）。它拥有以下特性：

耐高温：*高使用温度可达 350°C23，保证了其在气相色谱分析中的稳定性。

疏水性好：对水的亲和性低，因此在分析高湿度样品（如环境空气、呼吸气、水体）时，能有效避免水汽干扰，专注于目标有机物。

老化后基线稳定：经过适当老化处理后，其在色谱分析中能提供稳定的基线。

物理性质：通常其表面积为 35 m²/g，孔体积为 2.4 cm³/g，平均孔径为 200 nm，密度约为 0.25 g/cm³123。这些特性使其对高分子量、高沸点化合物具有很好的吸附能力。

TENAX-TA 凭借其 疏水耐温的特性 和 优异的吸附性能，成为了分析 环境中挥发性有机物，特别是 高沸点、高分子量化合物 的 得力工具。无论是在环境监测还是食品安全领域，它都能提供可靠的支持。



浩瀚色谱（山东）应用技术开发有限公司，采用《Tenax-TA填充色谱柱应用岛津2014》，在天然气，煤化工，环境VOCs中分离效果良好，在安捷伦，岛津，赛默飞，PE上取得了不错的效果。

名称：不锈钢填充色谱柱

型号：Tenax-TA,60-80目

规格：Φ3mm× 1.5m

zui高使用温度：350°C

应用：分析醇，乙二醇，胺，醛，酮，酚，芳烃

适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓


TENAX-TA chromatographic packing is a highly efficient porous polymer adsorbent, particularly suitable for collecting and analyzing volatile and semi volatile organic compounds. It is an indispensable material in many fields of environmental monitoring and industrial analysis.
The chemical name of TENAX-TA is 2,6-diphenylfuran porous polymer resin. It has the following characteristics:
High temperature resistance: The maximum operating temperature can reach 350 ° C23, ensuring its stability in gas chromatography analysis.
Good hydrophobicity: Low affinity for water, therefore it can effectively avoid water vapor interference and focus on target organic compounds when analyzing high humidity samples (such as ambient air, respiratory gases, water bodies).
Stable baseline after aging: After appropriate aging treatment, it can provide a stable baseline in chromatographic analysis.
Physical properties: Typically, its surface area is 35 m ²/g, pore volume is 2.4 cm ³/g, average pore size is 200 nm, and density is approximately 0.25 g/cm ³ 123. These characteristics make it have good adsorption capacity for high molecular weight and high boiling point compounds.
TENAX-TA, with its hydrophobic and temperature resistant properties and excellent adsorption performance, has become a powerful tool for analyzing volatile organic compounds in the environment, especially high boiling point and high molecular weight compounds. It can provide reliable support in both environmental monitoring and food safety fields.
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has achieved good separation effects in natural gas, coal chemical industry, and environmental VOCs using the "Tenax TA packed chromatography column application Shimadzu 2014". It has also achieved good results in Agilent, Shimadzu, Thermo Fisher Scientific, and PE.

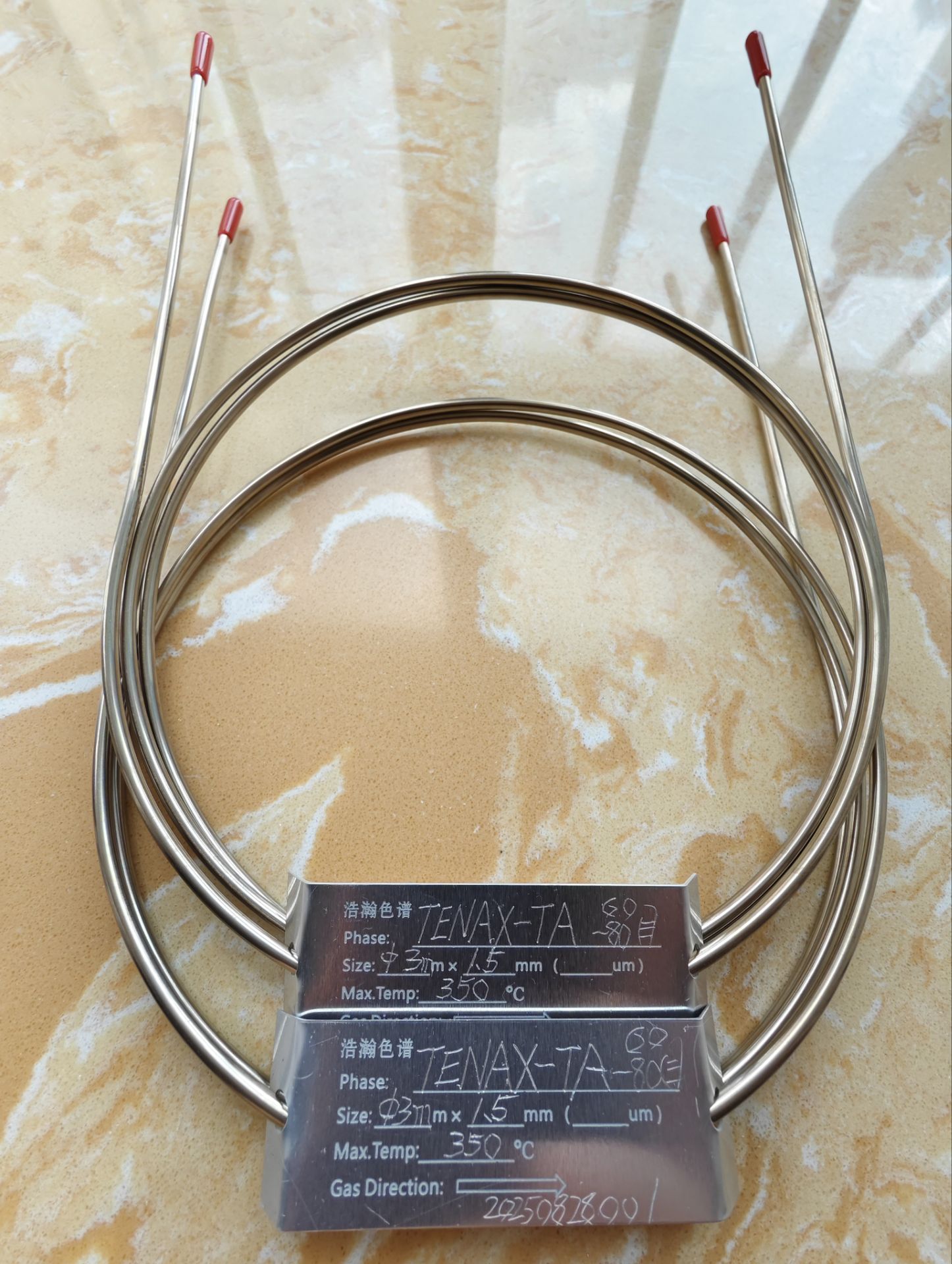

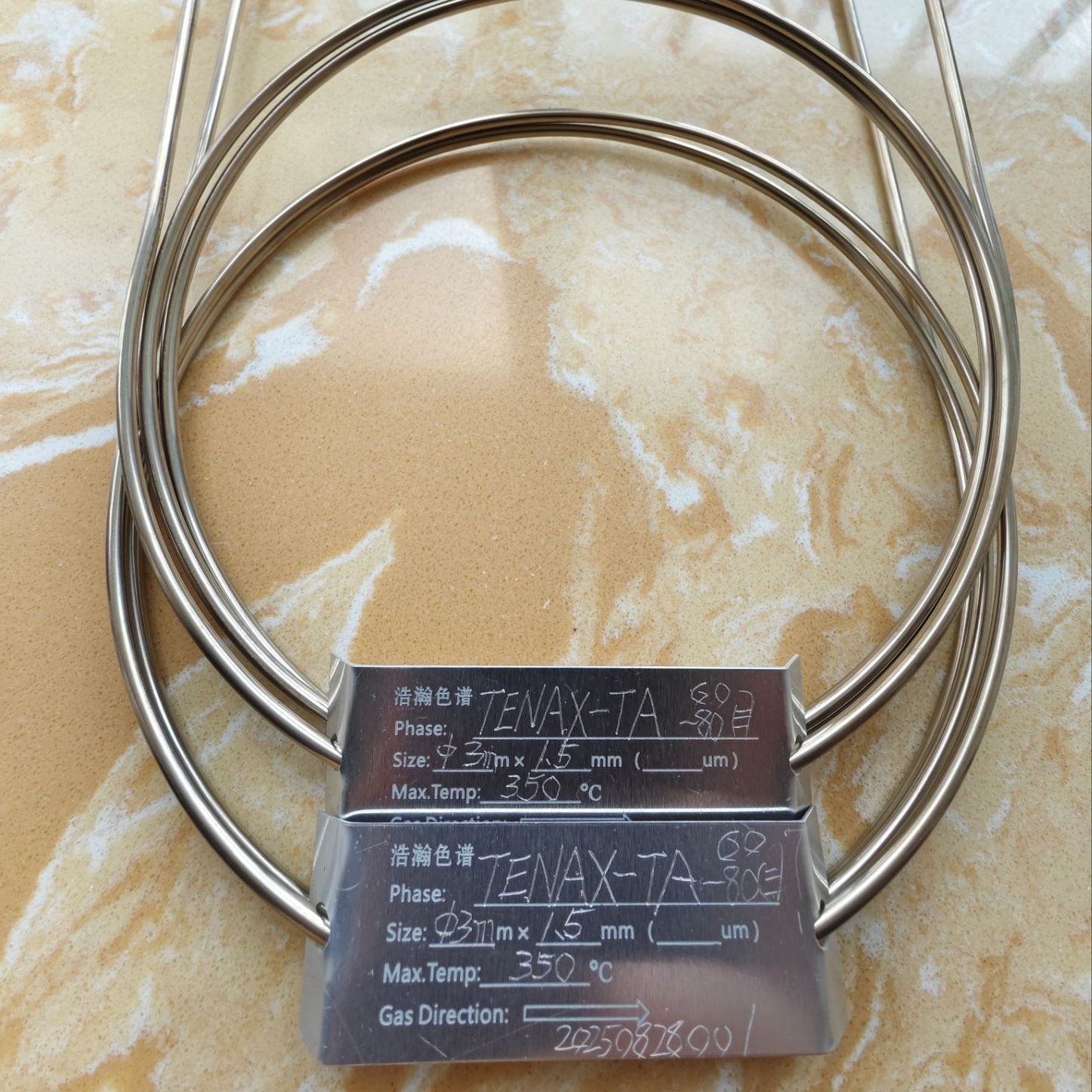

Name: Stainless Steel Filled Chromatography Column
Model: Tenax TA, 60-80 mesh
Specification: Φ 3mm × 1.5m
Maximum operating temperature: 350 ° C
Application: Analyze alcohols, ethylene glycol, amines, aldehydes, ketones, phenols, aromatic hydrocarbons
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
