岛津GDX-103填充柱应用在Shimadzu GC2010上4mm*4mm

GDX-103填充柱是一款基于高分子多孔聚合物（通常为聚二乙烯苯）的气相色谱填充柱，适用于分析多种化合物，尤其在一些特定应用中表现出色。



特性类别	描述
固定相	聚二乙烯苯 (GDX-103) 多孔小球
极性	非极性
常见规格	2m*3mm, 3m*3mm, 4mm*4mm (长度*内径); 另有1m, 2m, 3m及英制规格可选
填料粒度	60-80目, 80-100目
*高使用温度	250°C - 270°C
适用仪器	适用于岛津 (Shimadzu) 多个型号的气相色谱仪 (如 GC-14C, GC-2010, GC-2014, GC-2018, GC-2030 等)
主要应用	高沸点化合物、微量水分析、醇类化合物、有机酸、醚类化合物、轻气体和低沸点化合物、苯系物等
特色应用	蒸馏酒中杂醇油测定、工业乙酸中甲酸的测定、餐具洗涤剂中1,4-二噁烷的测定、食品用洗涤剂中甲醇含量测定、离子表面活性剂中二噁烷测定、化学试剂中微量水测定、乙酸异丙酯合成产物分析

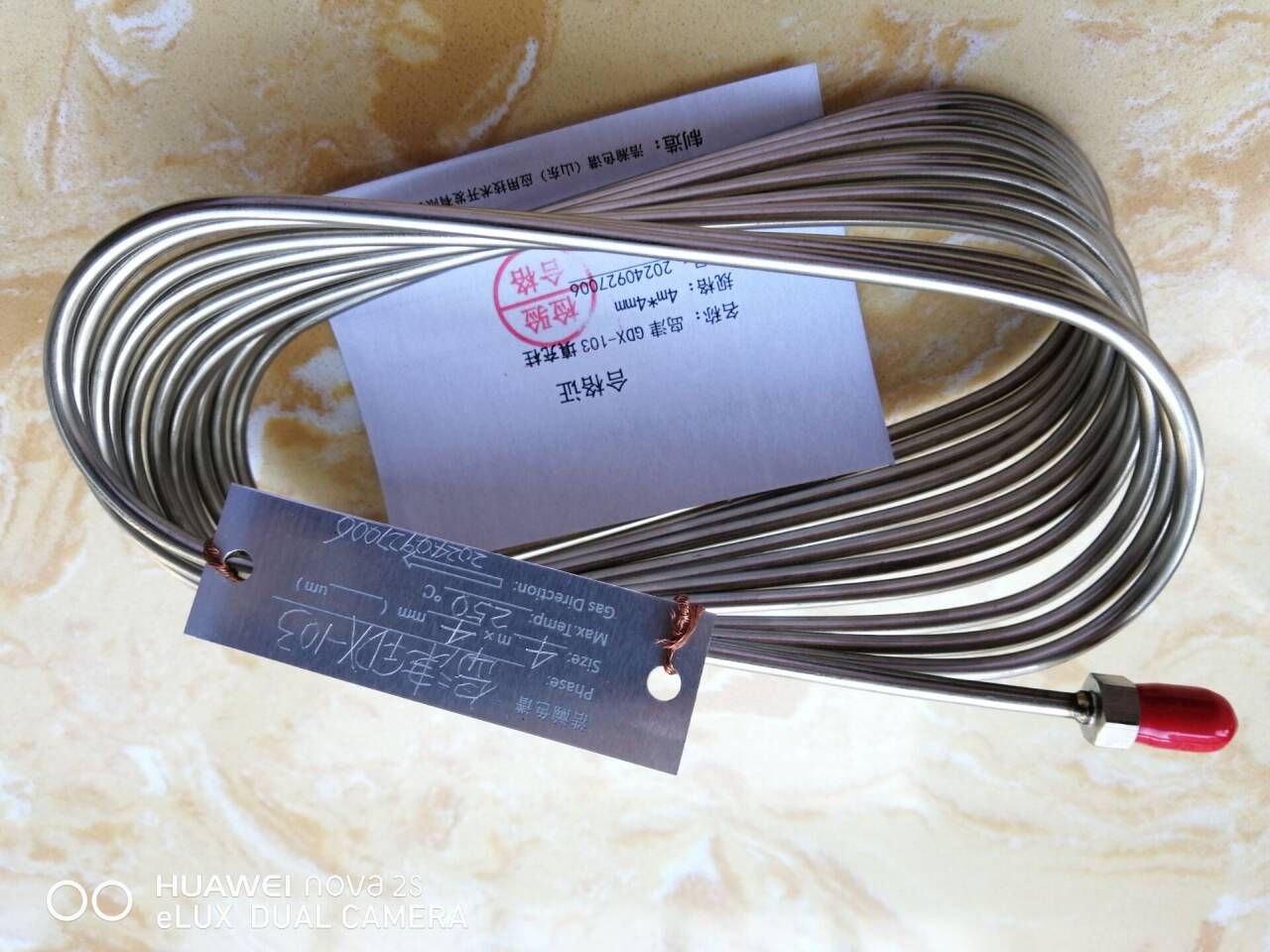

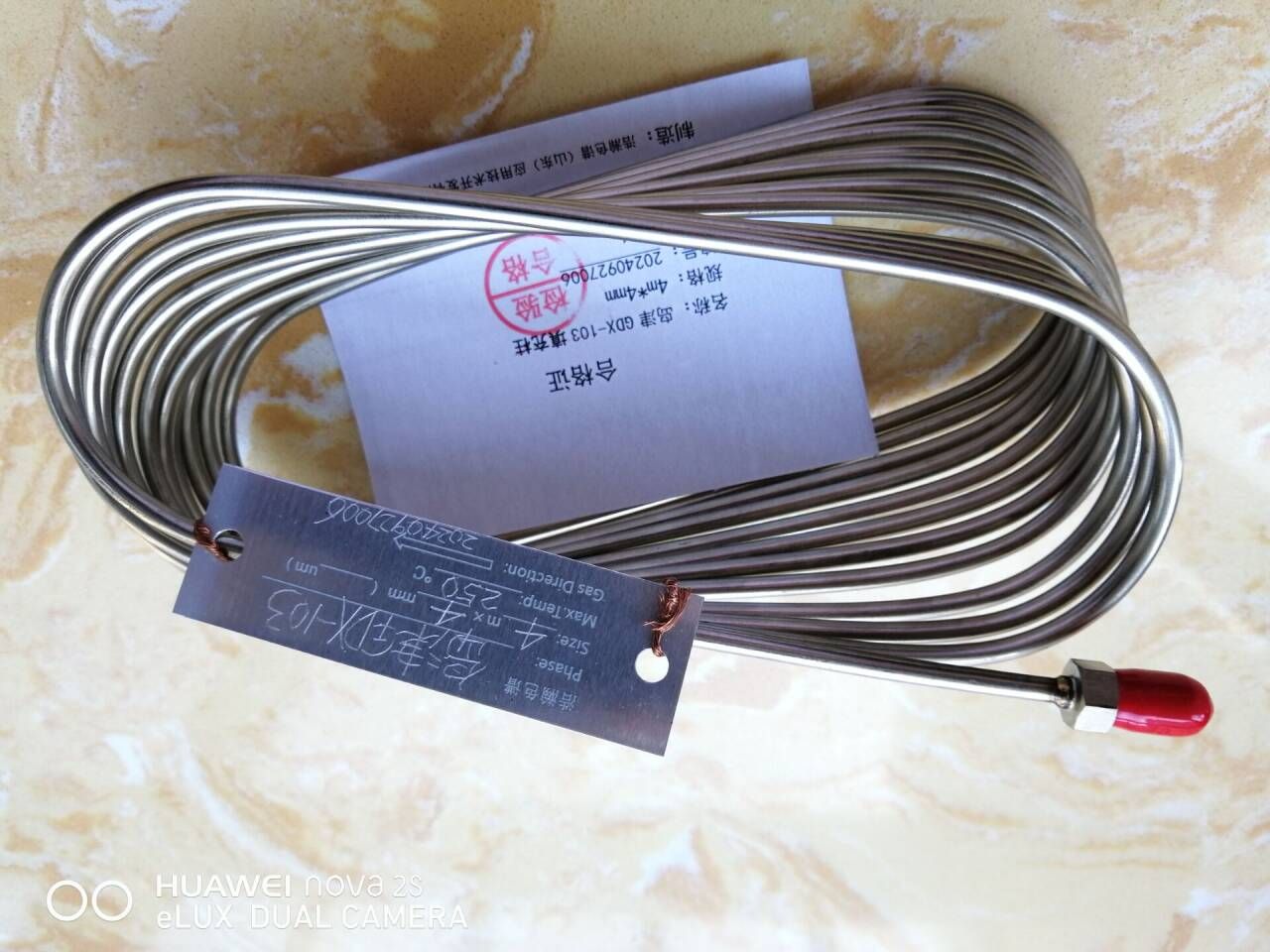

名称：岛津GDX-103填充柱

规格：4mm*4mm

zui高使用温度：250°C

应用：冰乙酸中甲酸的测定



浩瀚色谱（山东）应用技术开发有限公司,，研制生产《GDX-103填充色谱柱应用岛津GC14C》；蒸馏酒中杂醇油测定、工业乙酸中甲酸的测定、餐具洗涤剂中1,4-二噁烷的测定、食品用洗涤剂中甲醇含量测定、离子表面活性剂中二噁烷测定、化学试剂中微量水测定、乙酸异丙酯合成产物分析，效果良好。





应用：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓

GDX-103 packed column is a gas chromatography packed column based on a high molecular porous polymer (usually polyvinylbenzene), suitable for analyzing various compounds, especially performing well in some specific applications.
Characteristic category description
Fixed phase polyethylene benzene (GDX-103) porous spheres
Polarity Non Polarity
Common specifications: 2m * 3mm, 3m * 3mm, 4mm * 4mm (length * inner diameter); There are also 1m, 2m, 3m and imperial specifications to choose from
Packing particle size 60-80 mesh, 80-100 mesh
Maximum operating temperature 250 ° C -270 ° C
Applicable instruments for Shimadzu gas chromatographs of multiple models (such as GC-14C, GC-2010, GC-2014, GC-2018, GC-2030, etc.)
Mainly used for high boiling point compounds, trace water analysis, alcohol compounds, organic acids, ether compounds, light gases and low boiling point compounds, benzene derivatives, etc
Characteristic applications: determination of fusel oil in distilled spirits, determination of formic acid in industrial acetic acid, determination of 1,4-dioxane in dishwashing detergents, determination of methanol content in food detergents, determination of dioxane in ionic surfactants, determination of trace water in chemical reagents, and analysis of isopropyl acetate synthesis products
Name: Shimadzu GDX-103 Filler Column
Specification: 4mm * 4mm
Maximum operating temperature: 250 ° C
Application: Determination of formic acid in glacial acetic acid
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd., developed and produced "GDX-103 packed chromatography column application Shimadzu GC14C"; The determination of fusel oil in distilled spirits, formic acid in industrial acetic acid, 1,4-dioxane in dishwashing detergents, methanol content in food detergents, dioxane in ionic surfactants, trace water in chemical reagents, and analysis of synthesis products of isopropyl acetate have achieved good results.
Application:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
