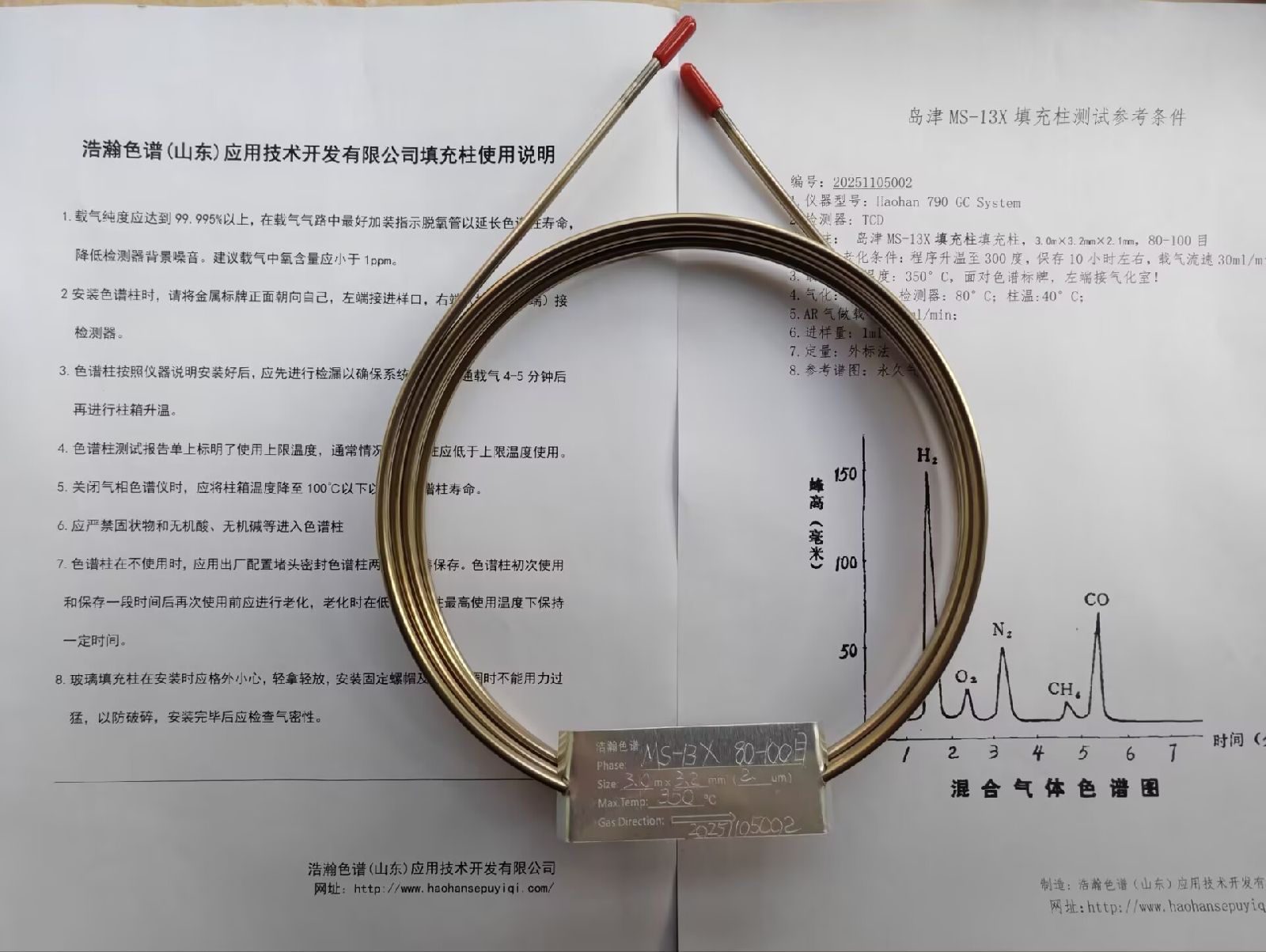

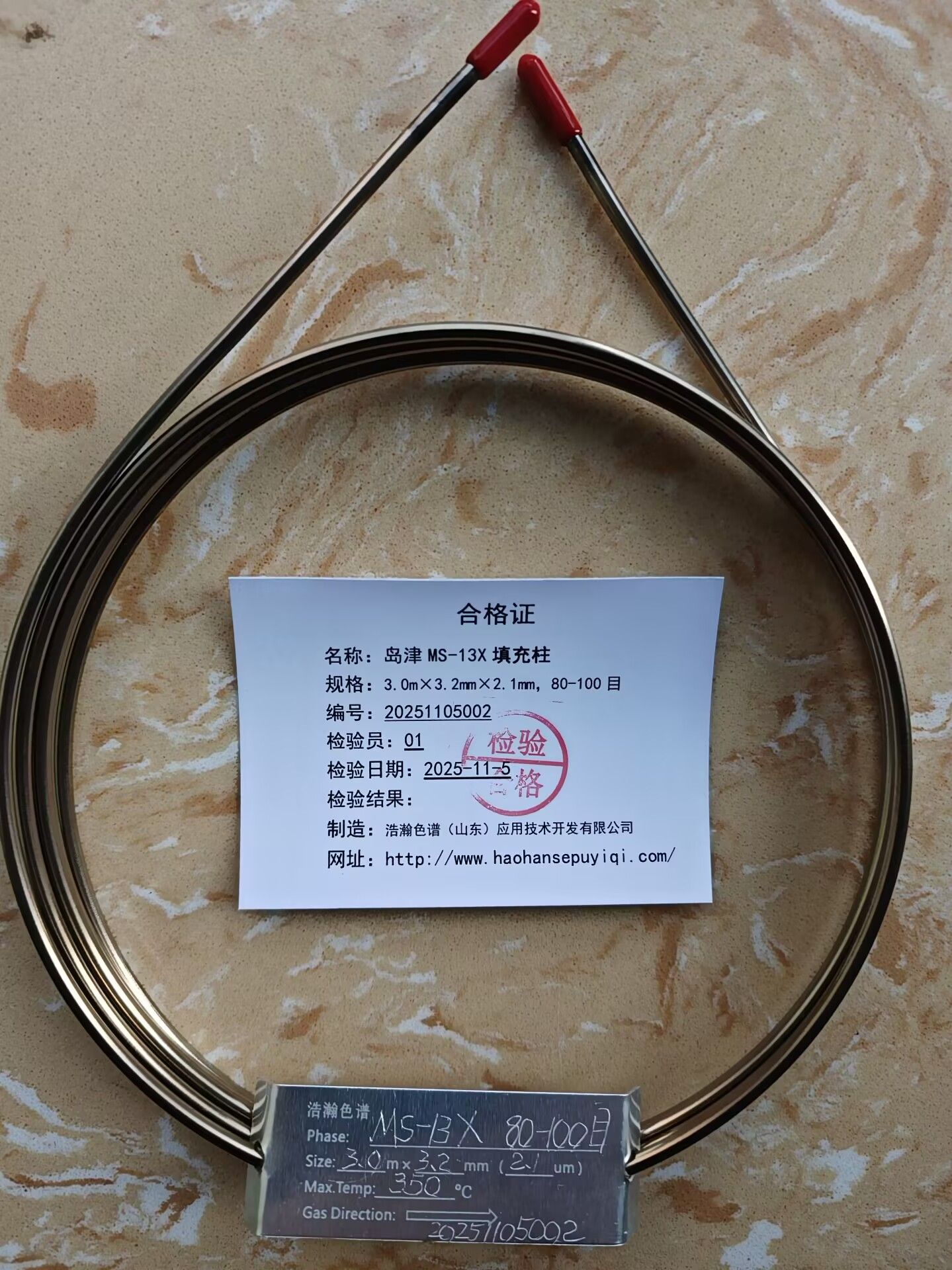

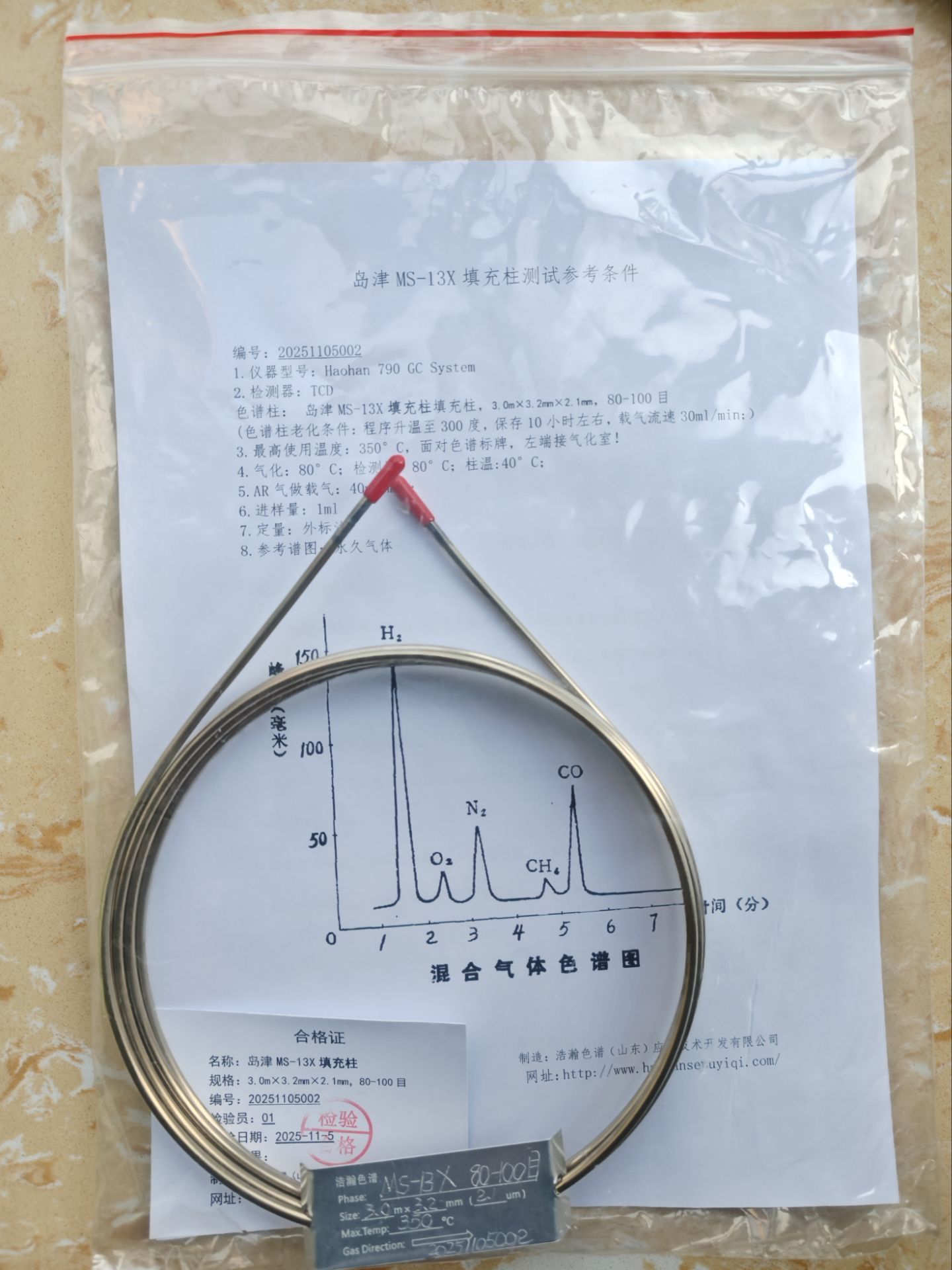

岛津MS-13X分子筛填充柱应用于GC2014/2010/2030系列3.0m×3.2mm×2.1mm

MS-13X分子筛填充柱在气体成分分析和分离中应用非常广泛，尤其在能源化工和环境监测领域表现突出。
孔径与吸附特性：13X分子筛的孔径约为10埃（Å），能有效吸附临界直径小于10Å的分子。这使得它不仅能吸附H₂、O₂、N₂、CO、CH₄等永久性气体，还能吸附一些较大的分子，如芳香烃和链状烃类。
活化（再生）条件：分子筛在使用前或吸附水分、杂质后需要进行活化以恢复性能。常见的活化条件是在 250°C下12小时，300°C下4小时，或350°C下2小时。
*高使用温度：MS-13X填充柱的*高使用温度通常为300°C至350°C


名称：岛津MS-13X填充柱

规格：3.0m×3.2mm×2.1mm，80-100目

zui高使用温度：350°C

应用：氢，氧，氮，一氧化碳，甲烷的分离



适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓



The MS-13X molecular sieve packed column is widely used in gas composition analysis and separation, especially in the fields of energy and chemical engineering and environmental monitoring.
Pore size and adsorption characteristics: The pore size of 13X molecular sieve is about 10 Å, which can effectively adsorb molecules with a critical diameter less than 10 Å. This allows it to adsorb not only permanent gases such as H ₂, O ₂, N ₂, CO, CH ₄, but also larger molecules such as aromatic hydrocarbons and chain hydrocarbons.
Activation (regeneration) conditions: Molecular sieves need to be activated before use or after adsorbing moisture and impurities to restore their performance. The common activation conditions are 12 hours at 250 ° C, 4 hours at 300 ° C, or 2 hours at 350 ° C.
Maximum operating temperature: The maximum operating temperature of MS-13X packed column is usually 300 ° C to 350 ° C
Name: Shimadzu MS-13X Filler Column
Specification: 3.0m × 3.2mm × 2.1mm, 80-100 mesh
Maximum operating temperature: 350 ° C
Application: Separation of hydrogen, oxygen, nitrogen, carbon monoxide, and methane
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
