haohan纯氖中O2+Ar及氮测定5埃填充柱应用安捷伦7890B上3m*4mm

本标准适用于空分法制取的氖，它主要用于电光源、红外遥感及科学研究等。

氧和氢(以氧计)、氮的测定：
4.3.1 方法:采用配备氦离子化检测器的气相色谱仪测定氖中的氧和氢(以氧计)、氮。
4.3.2 仪器参数
4.3.2.1 检测限:氧:0.5 x1 0-6- ,(v /v), 氮:0.5 x1 0-6(v/v),
4.3-2.2 色谱柱:将色谱分析用粒度为 。0.25-0.4 0m m的 0.5nm（5埃)分子筛装人内径 4m m长约
3m的不锈钢管内，于300℃下通干燥氦气活化 6h。或采用其他等效色谱柱。
4.1 2.3 载气:约30m I./min的高纯氦气，经纯化后其杂质含量比待测组分中的含量约低一个数量
级 。
4.3. 2.4 掺杂气:约0.05 M Pa;5-10m L/min的高纯氢。
4.3.2.5 样品体积:约3m L,
4.3-2.6 温度:检测器及色谱柱柱箱均为常温。
4.3.3 标样
含(5-10)X10-6

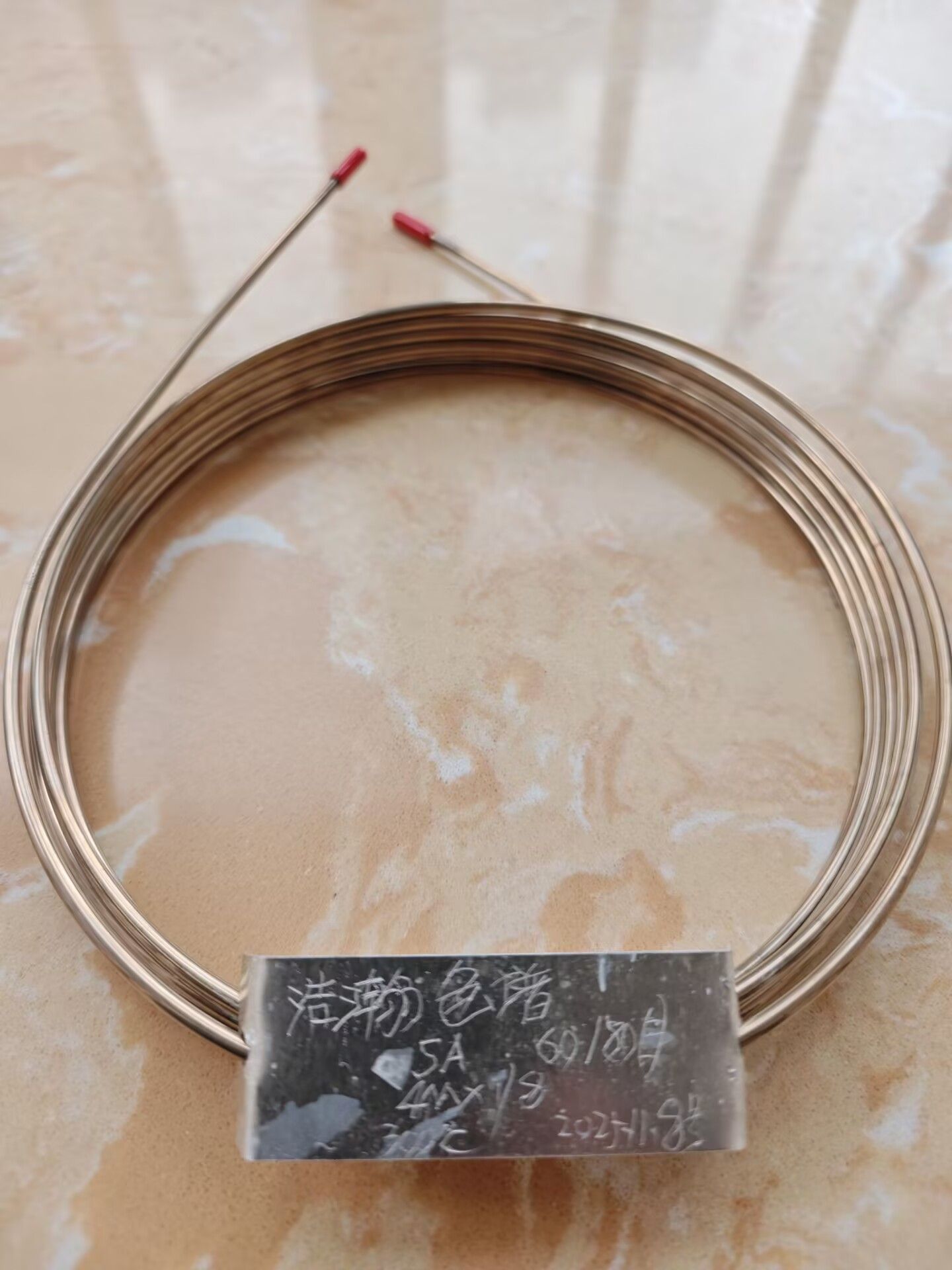

名称：填充柱

固定相：分子筛

规格：3m*4mm（内径），0.25-0.40mm

型号：5埃

应用：GB/T 17873-1999 纯氖中氧+氩，氮的测定

适用于：

安捷伦490在线/便携，4890,5890,6890,7820,7890,8860,8890

岛津GC-14C，GC-2010，GC-2014，GC-2030

赛默飞1310,1300,1610,1600

瓦里安3800系列

布鲁克PE580,590,680,690

磐诺A90，福立GC9790，华爱，天瑞，天美，GC7900，川仪，北分瑞利，东西电子，鲁南瑞虹，捷岛/科晓

浩瀚色谱（山东）应用技术开发有限公司，研制生产《纯氖中氧氩氮测定5埃填充色谱柱应用岛津》，测定纯氖中氧，氩，氮，柱效高，分离良好，效果满意。

GB/T 17873-1999 Pure Neon
This standard has been replaced by GB/T 17873-2014
This standard specifies the requirements, testing methods, packaging, labeling, storage, and transportation of pure neon products.
This standard is applicable to neon produced by air separation method, which is mainly used for electric light sources, infrared remote sensing, and scientific research.
Determination of oxygen, hydrogen (calculated as oxygen), and nitrogen:
4.3.1 Method: Use a gas chromatograph equipped with a helium ionization detector to determine oxygen, hydrogen (as oxygen), and nitrogen in neon.
4.3.2 Instrument Parameters
4.3.2.1 Detection limit: Oxygen: 0.5 x1 0-6-, (v/v), Nitrogen: 0.5 x1 0-6 (v/v),
4.3-2.2 Chromatographic Column: Use a particle size of for chromatographic analysis. 0.25-0.40mm 0.5nm (5 angstroms) molecular sieve with an inner diameter of 4m and a length of approximately
Activate a 3m stainless steel tube with dry helium gas at 300 ℃ for 6 hours, or use other equivalent chromatographic columns.
4.1 2.3 Carrier gas: High purity helium gas at a rate of approximately 30m I./min, purified to a impurity content approximately one quantity lower than that of the tested component
Grade.
4.3. 2.4 Doping gas: about 0.05 MPa; High purity hydrogen with a flow rate of 5-10m L/min.
4.3.2.5 Sample volume: approximately 3 mL,
4.3-2.6 Temperature: The detector and chromatographic column box are both at room temperature.
4.3.3 Standard Samples
Including (5-10) X10-6
Name: Filler Column
Fixed phase: molecular sieve
Specification: 3m * 4mm (inner diameter), 0.25-0.40mm
Model: 5A
Application: GB/T 17873-1999 Determination of Oxygen+Argon and Nitrogen in Pure Neon
Suitable for:
Agilent 490 online/portable, 48905890689088608890
Shimadzu GC-14C, GC-2010, GC-2014, GC-2030
Thermo Fisher Scientific 1310130016101600
Varian 3800 Series
Brooke PE580590680690
Panno A90, Fuli GC9790, Huaai, Tianrui, Tianmei, GC7900， Chuanyi, Beifen Ruili, Dongxi Electronics, Lunan Ruihong, Jiedao/Kexiao
Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed and produced the application of Shimadzu packed chromatography column for the determination of oxygen, argon, and nitrogen in pure neon. The column has high column efficiency, good separation, and satisfactory results.
